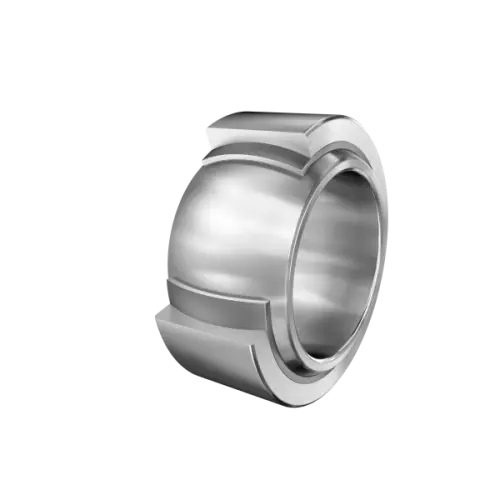

INA GE8-FW
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: PTFE composite, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

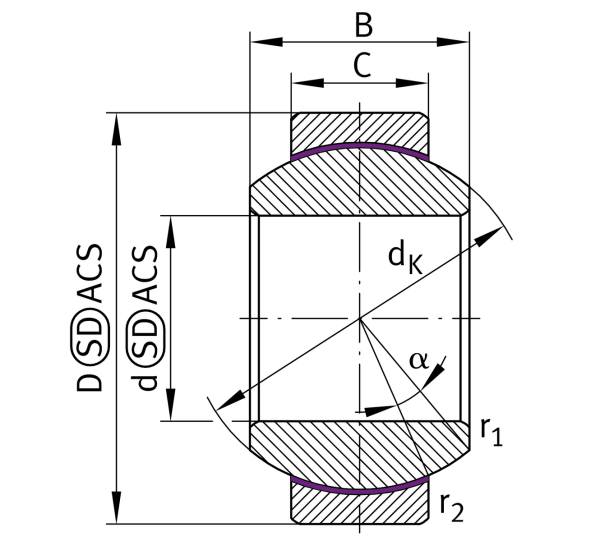

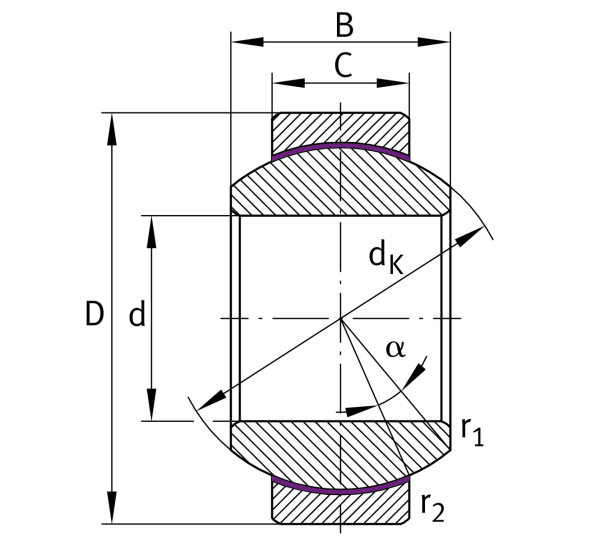

Main Dimensions & Performance Data
d
8 mm
Bore diameter bearing
D
19 mm
Outside diameter bearing
B
11 mm
Width Inner ring
C
6 mm
Width Outer ring
Cr
8,640 N
Basic dynamic load rating, radial
C0r
21,600 N
Basic static load rating, radial
≈m
13.77 g
Weight
Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
Damin
15.5 mm
Housing Connection Diameter
damax
11.6 mm
Connection measurement, inner ring
