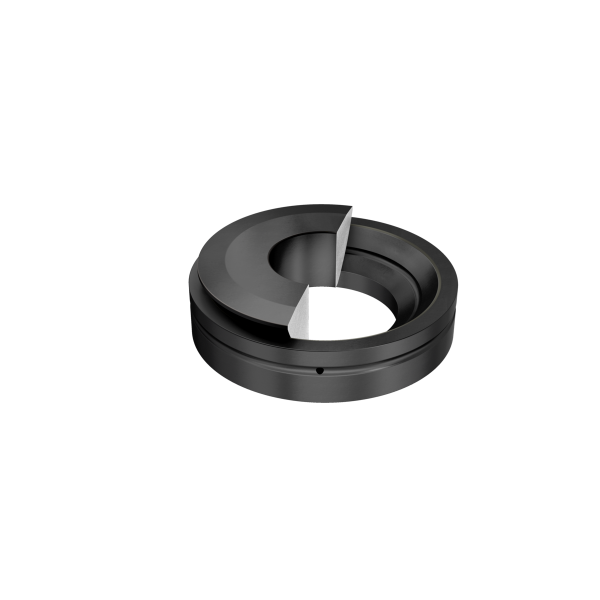

INA GE80-AX
Spherical Plain Bearings
Axial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel
(BRAND)：INA
(Availability)：In Stock

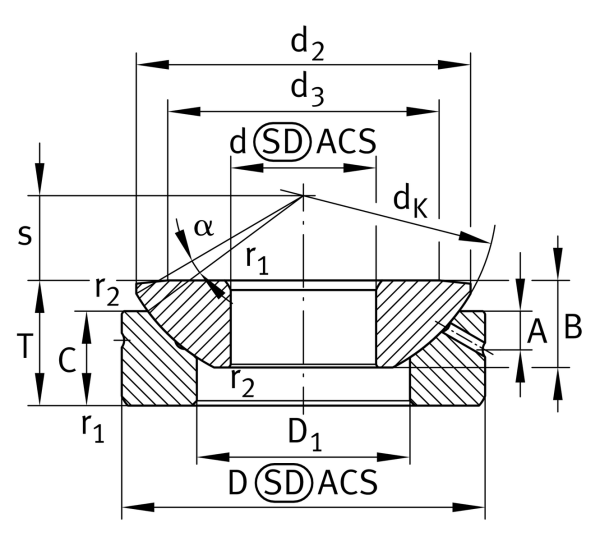

Main Dimensions & Performance Data
d
80 mm
Inner diameter bearing
D
180 mm
Outside diameter bearing
T
50 mm
Height
Ca
1,350,000 N
Basic dynamic load rating, axial
C0a
5,180,000 N
Basic static load rating, axial
≈m
7.14 kg
Weight
Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing
da max
130 mm
Connection measure Inner ring
Da min
115 mm
Housing Connection Diameter
