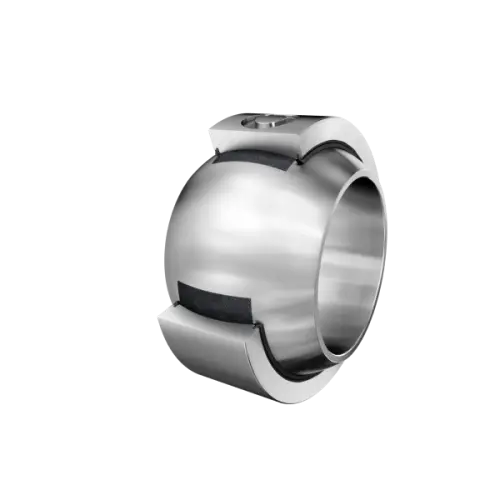

INA GE80-FW-2RS
Spherical Plain Bearings
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed
(BRAND)：INA
(Availability)：In Stock

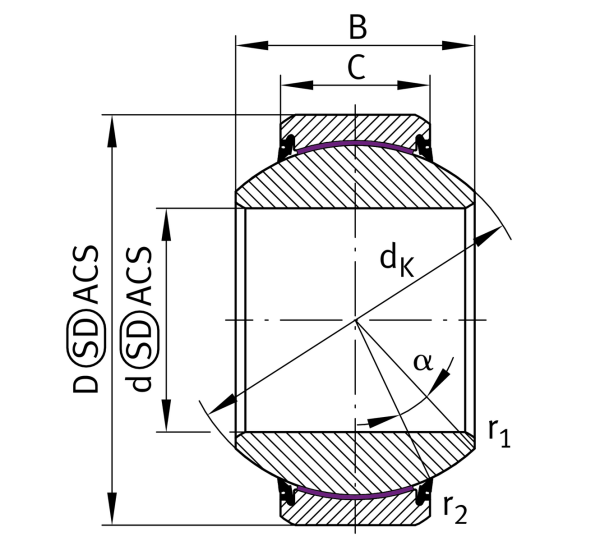

Main Dimensions & Performance Data
d
80 mm
Bore diameter bearing
D
130 mm
Outside diameter bearing
B
75 mm
Width Inner ring
C
50 mm
Width Outer ring
Cr
1,380,000 N
Basic dynamic load rating, radial
C0r
2,300,000 N
Basic static load rating, radial
≈m
3.56 kg
Weight

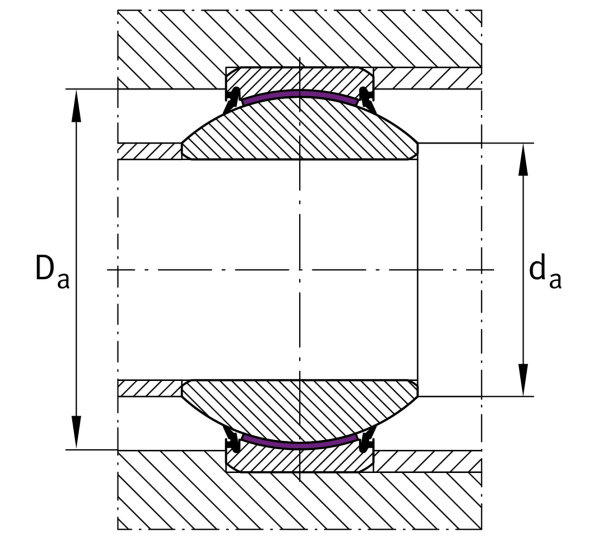

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
Damin
108 mm
Housing Connection Diameter
damax
87.1 mm
Connection measurement, inner ring
