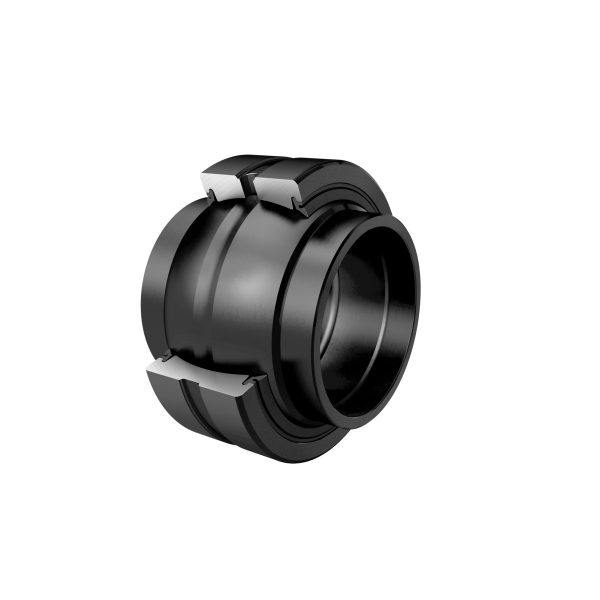

INA GE80-HO-2RS
Spherical Plain Bearings
High performance Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, cylindrical extensions on inner ring, sealedHigh-performance: For highest load rating and lifetime demands
(BRAND)：INA
(Availability)：In Stock

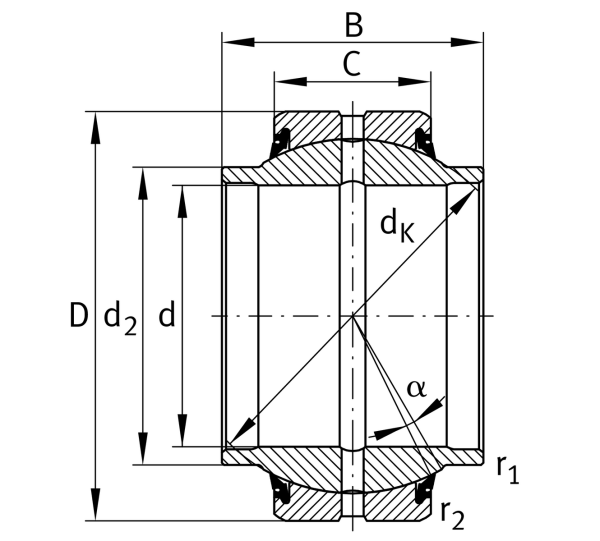

Main Dimensions & Performance Data
d
80 mm
Bore diameter bearing
D
120 mm
Outside diameter bearing
B
74 mm
Width Inner ring
Cr
522,000 N
Basic dynamic load rating, radial
C0r
2,010,000 N
Basic static load rating, radial
≈m
2.25 kg
Weight

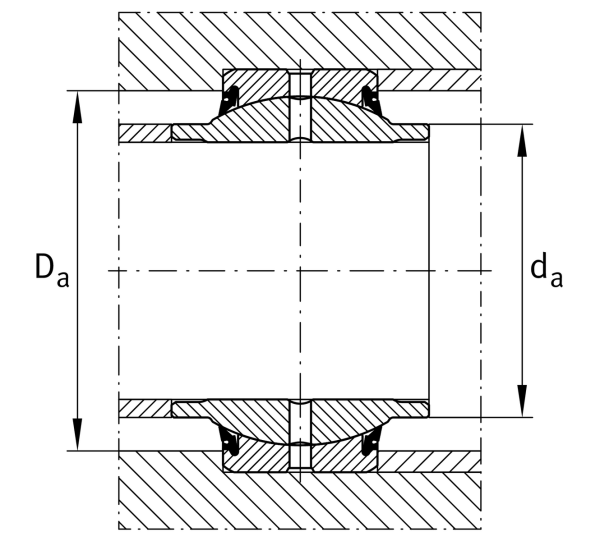

Mounting dimensions
r1smin
0.3 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
90 mm
Connection measure Inner ring
Da min
99 mm
Housing Connection Diameter
