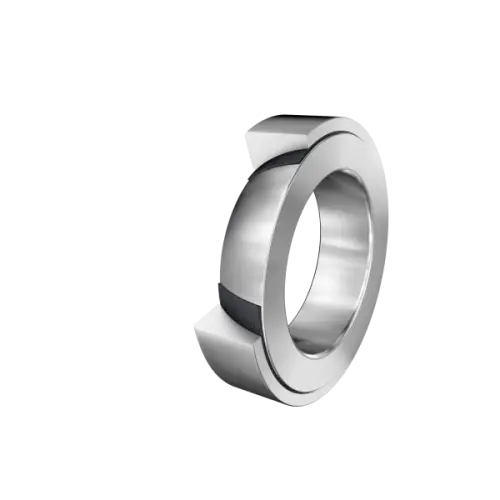

INA GE80-SW
Spherical Plain Bearings

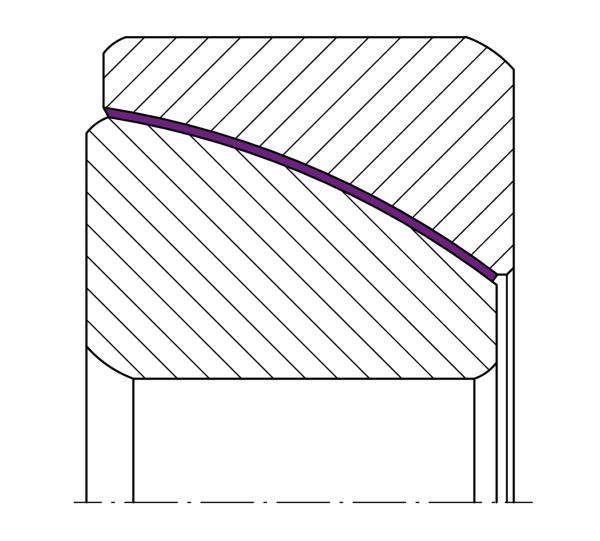

Angular contact spherical plain bearing, maintenance-free, DIN ISO 12240-2, inner ring curved surface with hard chromium coating, open design
(BRAND)：INA
(Availability)：In Stock

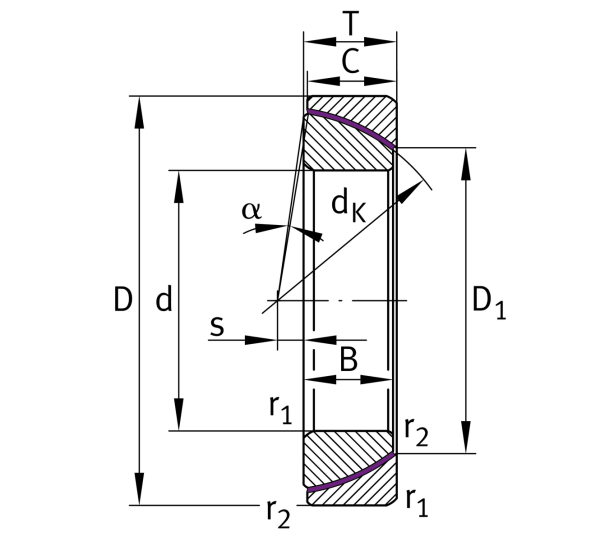

Main Dimensions & Performance Data
d
80 mm
Bore diameter bearing
D
125 mm
Outside diameter bearing
T
29 mm
Height
B
27 mm
Width Inner ring
Cr
734,000 N
Basic dynamic load rating, radial
C0r
1,220,000 N
Basic static load rating, radial
≈m
1.53 kg
Weight

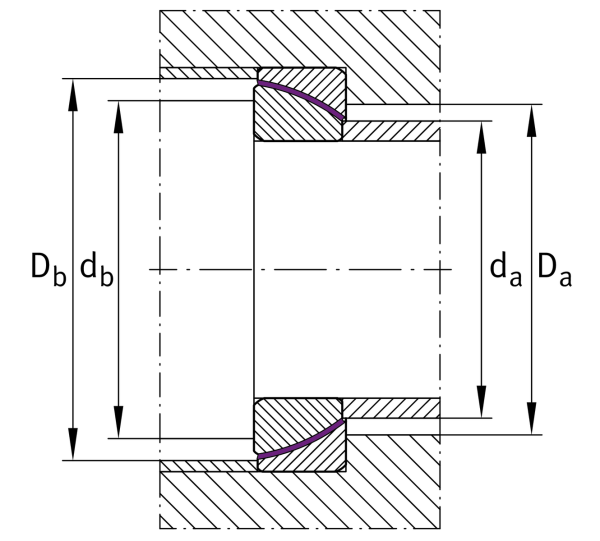

Mounting dimensions
r1smin
1.5 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
88 mm
Connection measure Inner ring
Db min
117 mm
Connection diameter
db max
104 mm
Connection measure Inner ring
Da min
99 mm
Housing Connection Diameter
