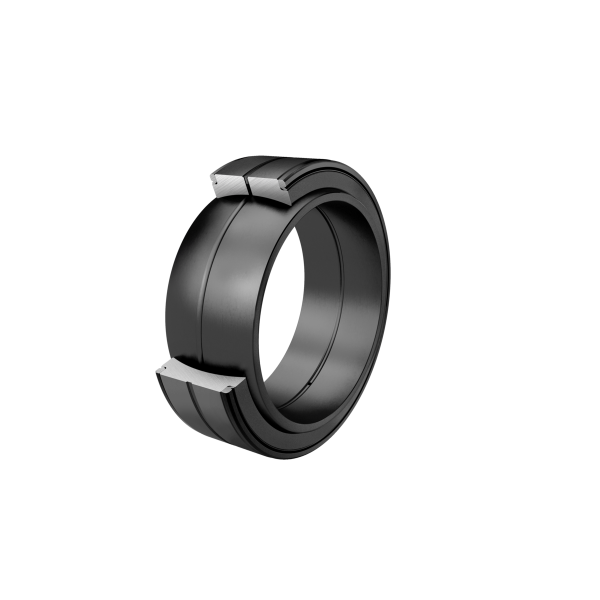

INA GE800-DO
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
800 mm
Bore diameter bearing
D
1,060 mm
Outside diameter bearing
B
355 mm
Width Inner ring
Cr
35,100,000 N
Basic dynamic load rating, radial
C0r
135,000,000 N
Basic static load rating, radial
≈m
920.1 kg
Weight
Mounting dimensions
r1smin
3 mm
Edge Spacing
r2smin
6 mm
Edge Spacing
da max
859.6 mm
Connection measure Inner ring
Da min
886 mm
Housing Connection Diameter
