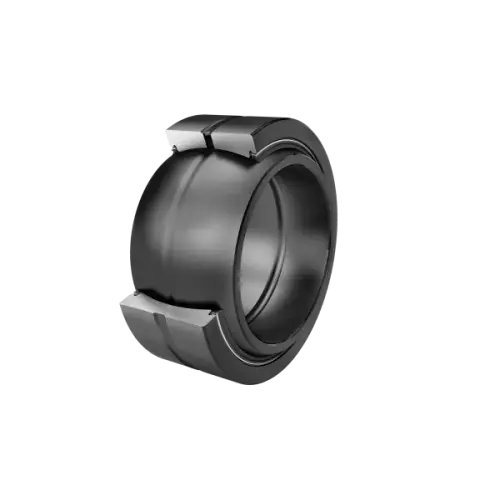

INA GE88-ZO-2RS-E
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/stee,, inch size, sealed design
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
88.9 mm
Bore diameter bearing
D
139.7 mm
Outside diameter bearing
B
77.775 mm
Width Inner ring
Cr
683,000 N
Basic dynamic load rating, radial
C0r
3,410,000 N
Basic static load rating, radial
≈m
4.8 kg
Weight

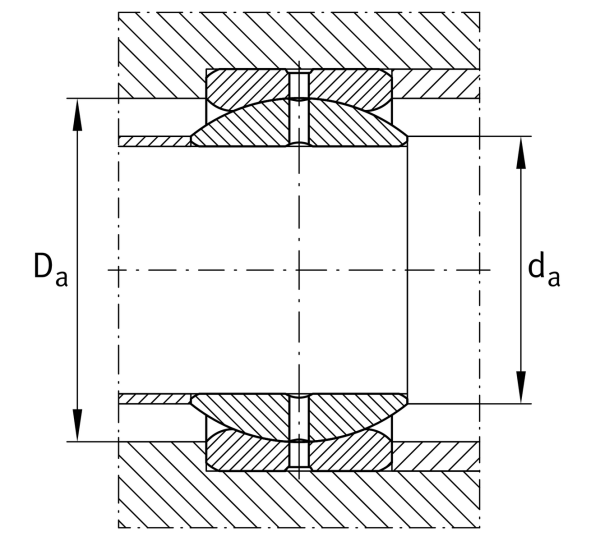

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
101.6 mm
Connection measure Inner ring
Da min
114 mm
Housing Connection Diameter
