INA GE90-SX
Spherical Plain Bearings
Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design
(BRAND)：INA
(Availability)：In Stock

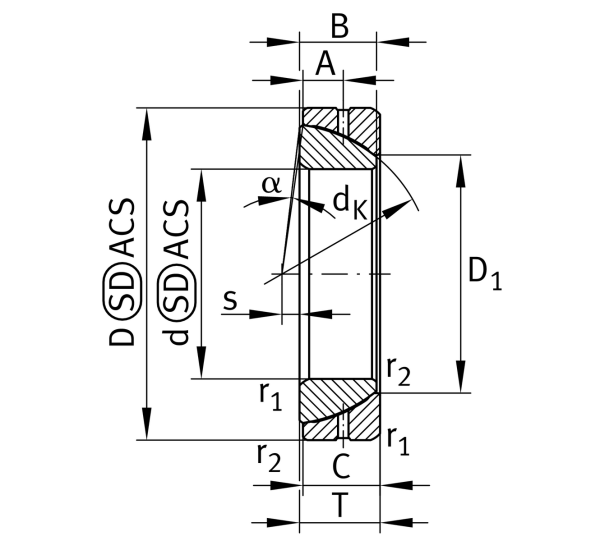

Main Dimensions & Performance Data
d
90 mm
Inner diameter bearing
D
140 mm
Outside diameter bearing
T
32 mm
Height
Cr
407,000 N
Basic dynamic load rating, radial
C0r
1,570,000 N
Basic static load rating, radial
≈m
2.018 kg
Weight

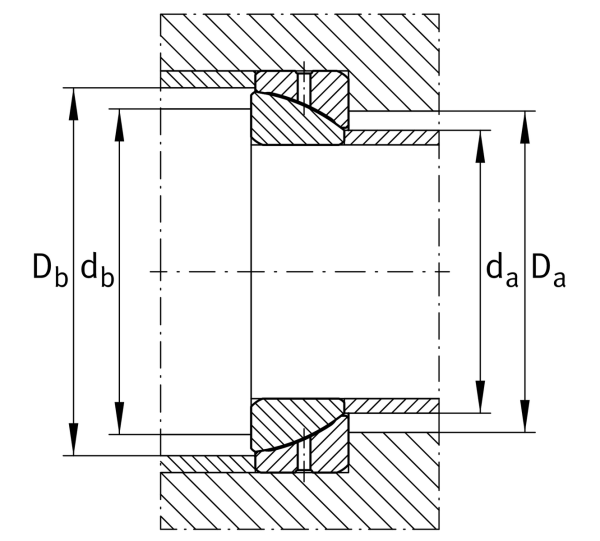

Mounting dimensions
r1smin
2 mm
Edge Spacing
r2smin
0.6 mm
Edge Spacing
da max
100.9 mm
Connection measure Inner ring
Da min
112 mm
Housing Connection Diameter
Db min
132 mm
Connection diameter
