INA GE95-ZO-2RS-E
Spherical Plain Bearings
Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/stee,, inch size, sealed design
(BRAND)：INA
(Availability)：In Stock

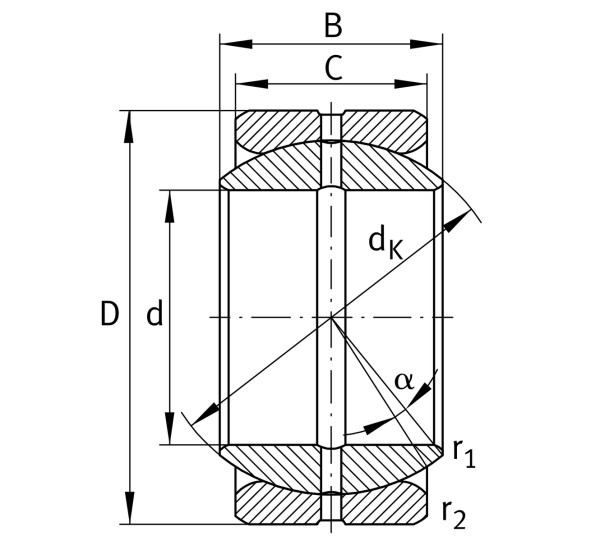

Main Dimensions & Performance Data
d
95.25 mm
Bore diameter bearing
D
149.225 mm
Outside diameter bearing
B
83.337 mm
Width Inner ring
Cr
783,000 N
Basic dynamic load rating, radial
C0r
3,910,000 N
Basic static load rating, radial
≈m
5.8 kg
Weight

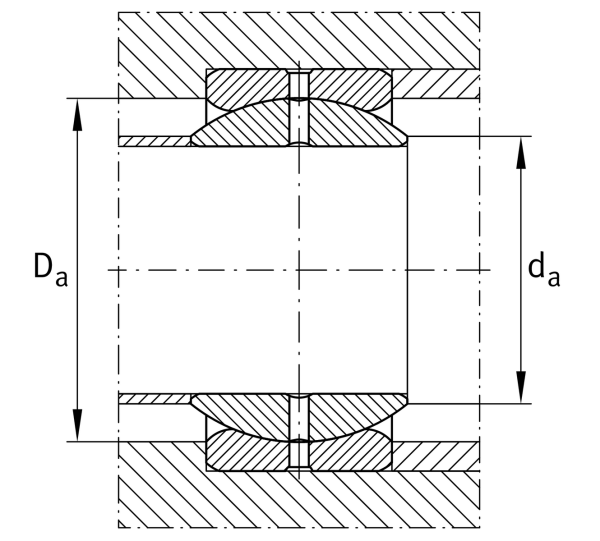

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
1 mm
Edge Spacing
da max
108.7 mm
Connection measure Inner ring
Da min
122 mm
Housing Connection Diameter
