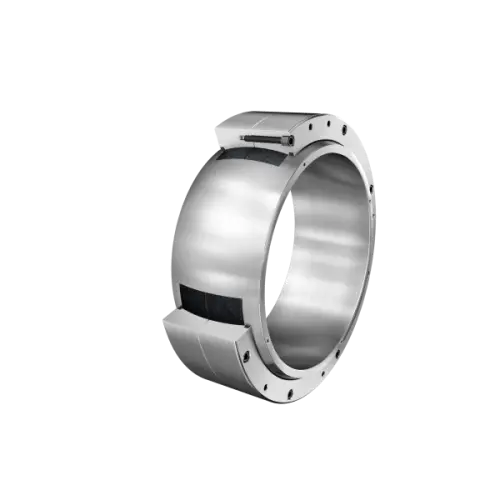

INA GE950-DW-XL
Spherical Plain Bearings

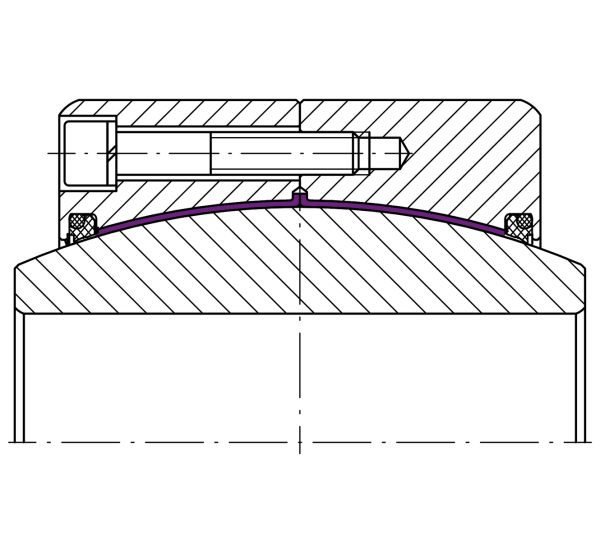

Large radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series C, open design
(BRAND)：INA
(Availability)：In Stock

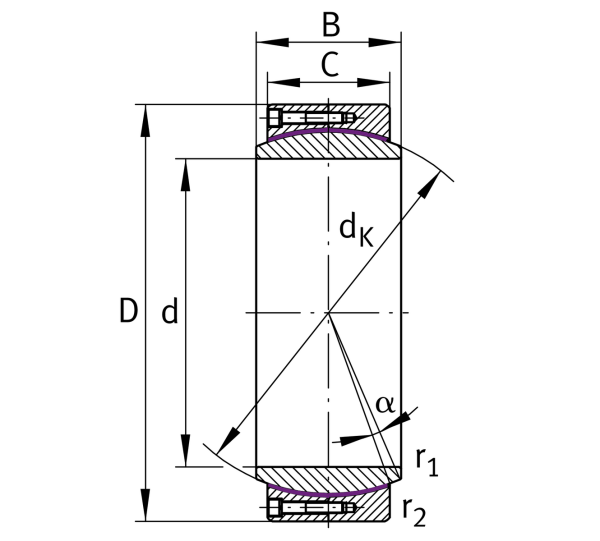

Main Dimensions & Performance Data
d
950 mm
Bore diameter bearing
D
1,250 mm
Outside diameter bearing
B
400 mm
Width Inner ring
C
340 mm
Width Outer ring
Cr
112,000,000 N
Basic dynamic load rating, radial
C0r
187,000,000 N
Basic static load rating, radial
≈m
1,435.3 kg
Weight

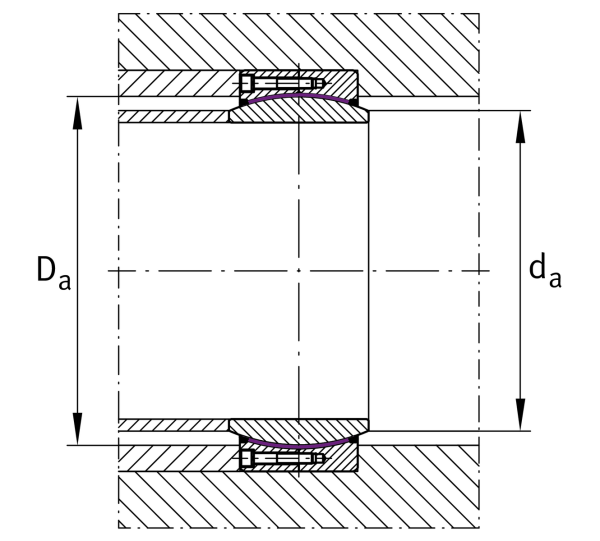

Mounting dimensions
r1smin
4 mm
Edge Spacing
r2smin
7.5 mm
Edge Spacing
Damin
1,052 mm
Housing Connection Diameter
damax
1,024.7 mm
Connection measurement, inner ring
