INA GF70-DO-2TS
Rod Ends
Hydraulic rod end, with rectangular welding face, requiring maintenance, sliding contact surface: steel/steel, sealed design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

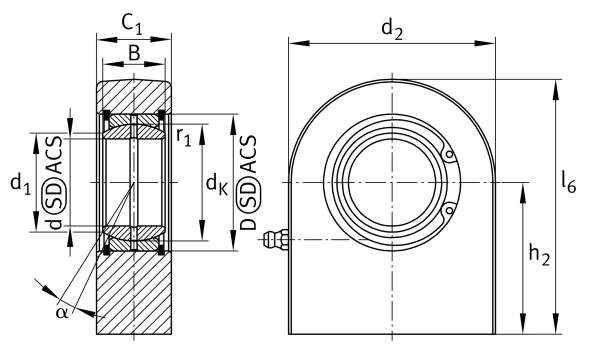

Main Dimensions & Performance Data
Cr
407,000 N
Basic dynamic load rating, radial
C0r
725,000 N
Basic static load rating, radial
d
70 mm
Bore diameter bearing
d2
164 mm
Outer eye diameter
l6
197 mm
Total length welding head
D
105 mm
Outside diameter bearing
B
49 mm
Width inner ring
≈m
10.3 kg
Weight
Mounting dimensions
r1smin
1 mm
Edge Spacing
d1
77.9 mm
Outer flange diameter inner ring
