INA GIHNLK63-LO
Rod Ends
Hydraulic rod end, with thread clamping device, left hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN 24338 ISO 6982, open design
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

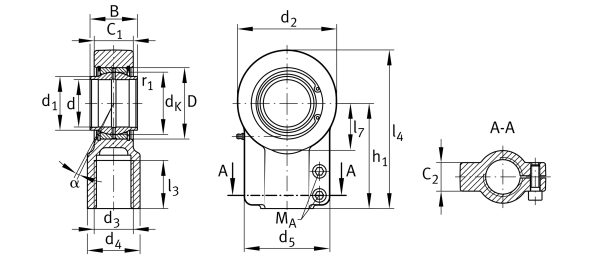

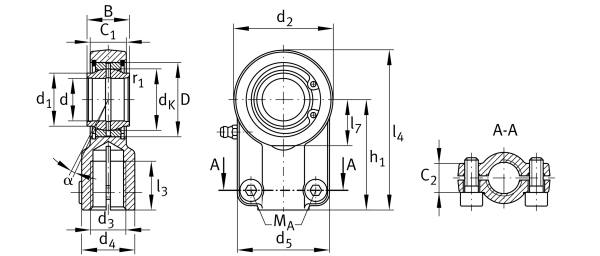

Main Dimensions & Performance Data
Cr
330,000 N
Basic dynamic load rating, radial
C0r
321,000 N
Basic static load rating, radial
d
63 mm
Bore diameter bearing
d2
132 mm
Outer eye diameter
l4
211 mm
Total length internal thread head
D
95 mm
Outside diameter bearing
B
63 mm
Width inner ring
≈m
6.86 kg
Weight
Mounting dimensions
r1smin
1 mm
Edge Spacing
d1
71.5 mm
Outer flange diameter inner ring
