INA GRA100-XL-NPP-B-AS2/V
Insert Ball Bearings and Belt Tension Pulleys

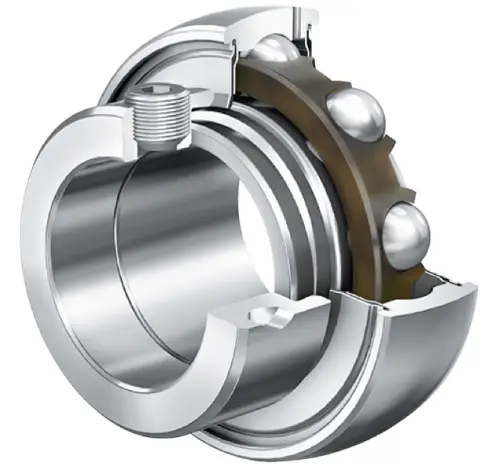

Radial insert ball bearings GRA..-NPP-B-AS2/V, spherical outer ring, location by eccentric locking collar, P seals on both sides, inch size bore
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

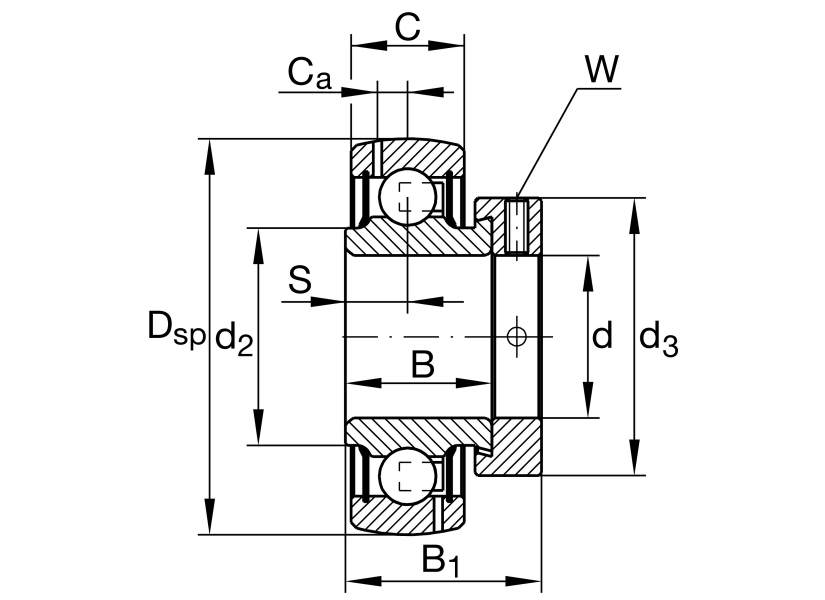

Main Dimensions & Performance Data
d
25.4 mm
Bore diameter
d
1 in
Bore diameter, inch
DSP
52 mm
Outside diameter
B1
31 mm
Locking collar total width
B
21.4 mm
Width
Cur
400 N
Fatigue load limit, radial
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.18 kg
Weight
