INA GRAE25-XL-NPP-B-AS2/V
Insert Ball Bearings and Belt Tension Pulleys

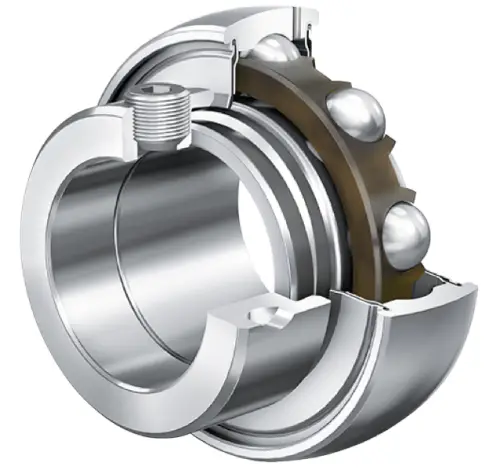

Radial insert ball bearing GRAE..-NPP-B-AS2/V
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

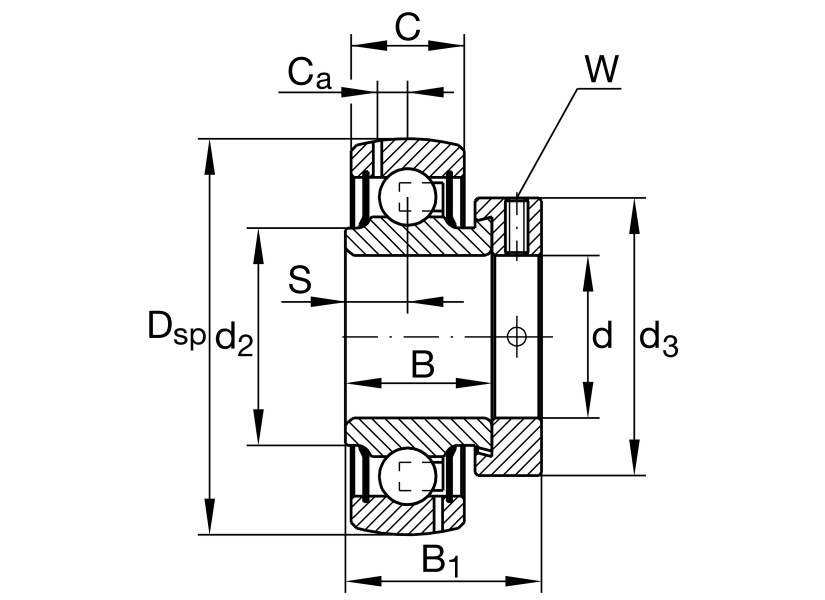

Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
21.4 mm
Width
Cur
370 N
Fatigue load limit, radial
B1
31 mm
Locking collar total width
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.19 kg
Weight
