INA GY1014-KRR-B-AS2/V
Insert Ball Bearings and Belt Tension Pulleys

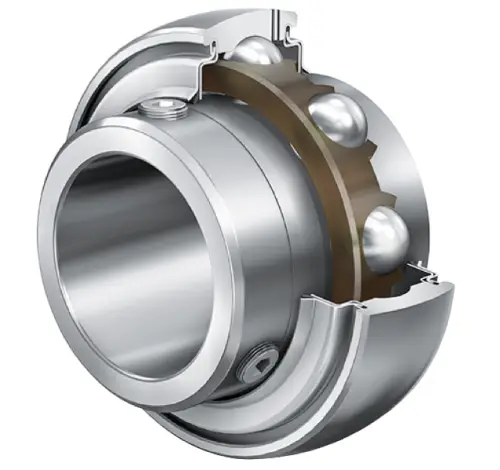

Radial insert ball bearing GY..-KRR-B-AS2/V
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

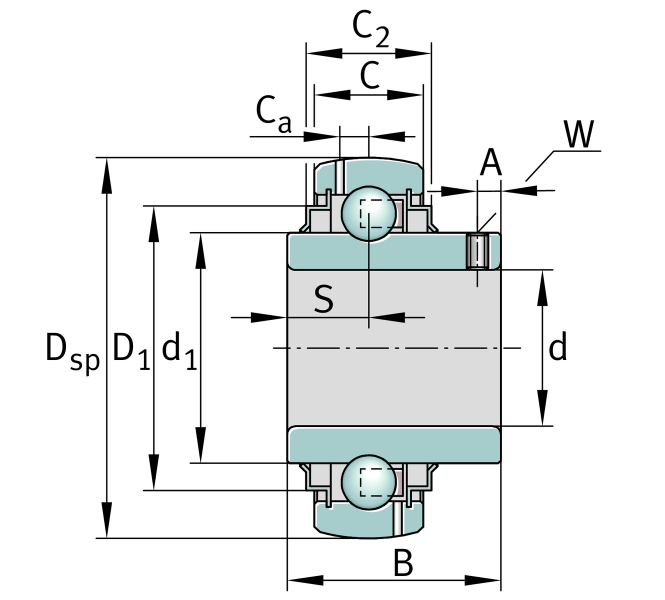

Main Dimensions & Performance Data
d
22.225 mm
Bore diameter
d
0.875 in
Bore diameter, inch
DSP
52 mm
Outside diameter
B
34.1 mm
Width
Cur
355 N
Fatigue load limit, radial
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
214 g
Weight
