INA GYE15-XL-KRR-B
Insert Ball Bearings and Belt Tension Pulleys

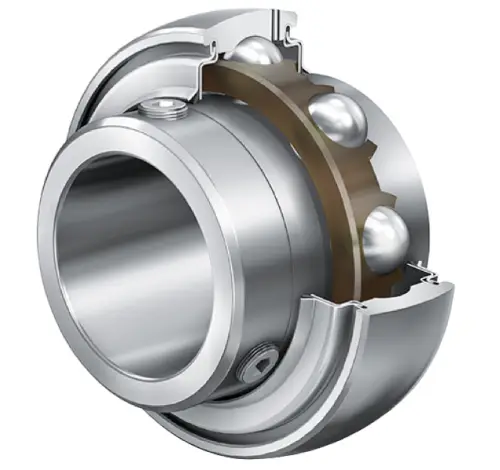

Radial insert ball bearings GYE..-KRR-B, spherical outer ring, location by grub screws, R seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

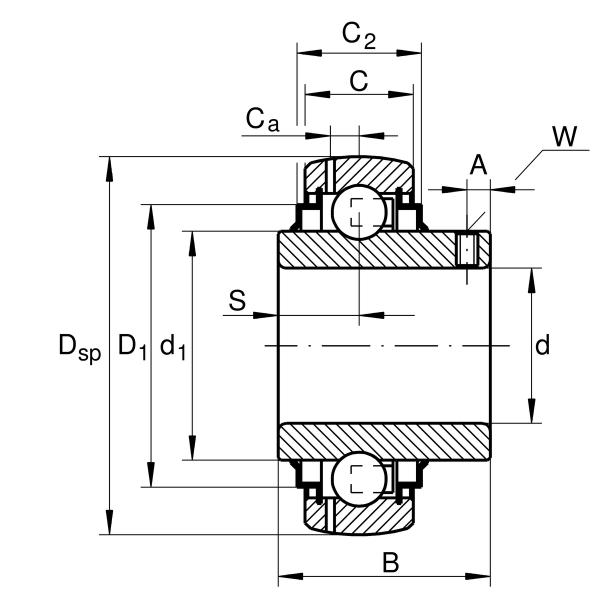

Main Dimensions & Performance Data
d
15 mm
Bore diameter
DSP
40 mm
Outside diameter
B
27.4 mm
Width
Cur
202 N
Fatigue load limit, radial
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
0.1 kg
Weight
