INA GYE30-XL-KRR-B-AS2/V
Insert Ball Bearings and Belt Tension Pulleys

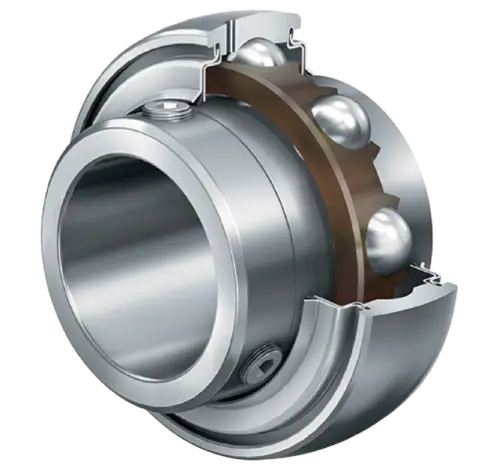

Radial insert ball bearings GYE..-KRR-B, spherical outer ring, location by grub screws, R seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

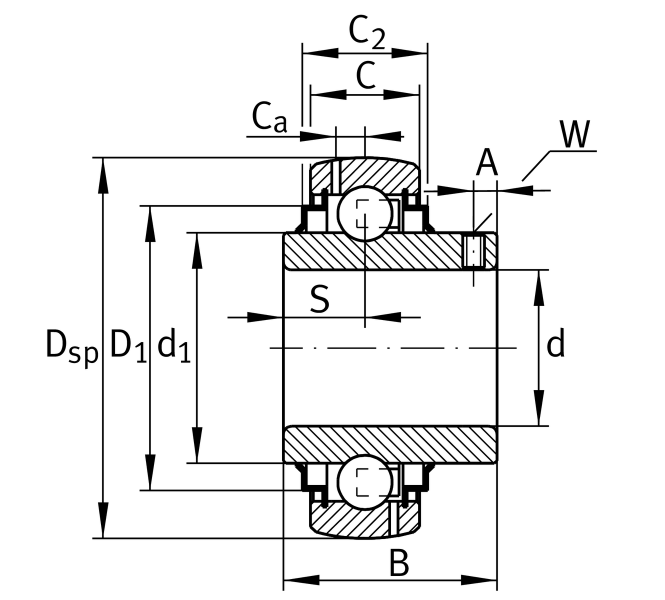

Main Dimensions & Performance Data
d
30 mm
Bore diameter
DSP
62 mm
Outside diameter
B
38.1 mm
Width
Cur
480 N
Fatigue load limit, radial
Cr
19,500 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
0.294 kg
Weight
