INA KSR15-B0-06-10-20-08

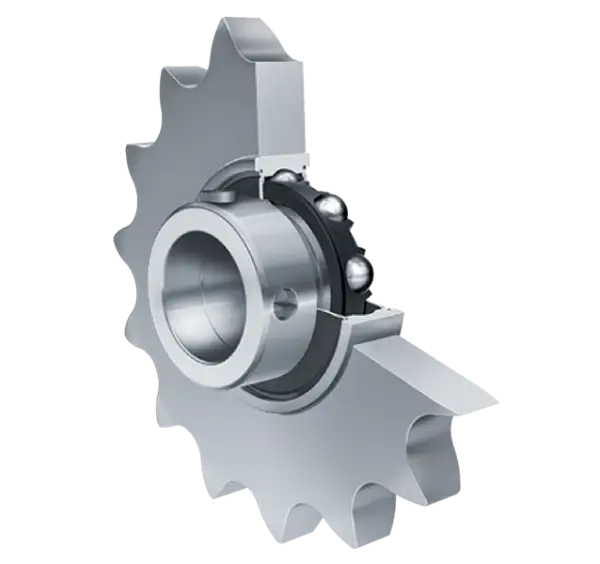

Roller Chain Idler Sprocket Unit

Roller chain idler sprocket units KSR..-B0, sprocket made from steel or sintered iron

(BRAND)：INA

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

KSR15-B0-06-10-20-08

Roller Chain Idler Sprocket Unit

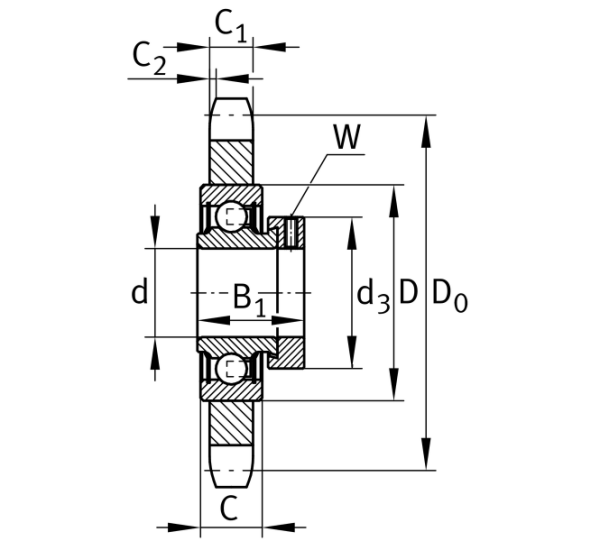

Main Dimensions & Performance Data

d 15 mm Bore diameter

d 0.018 mm Upper tolerance

d 0 mm Lower tolerance

C₁ 5.2 mm Thickness of sprocket

D₀ 60.9 mm Pitch circle diameter (gearing)

D_k 65 mm Tip diameter (gearing)

≈m 0.17 kg Weight

Mounting dimensions

p 0.375 in Tooth set

z 20 Number of teeth

x ISO chain

W M6 X 0,75 mm Width accros flats
