INA KSR16-L0-08-10-16-15

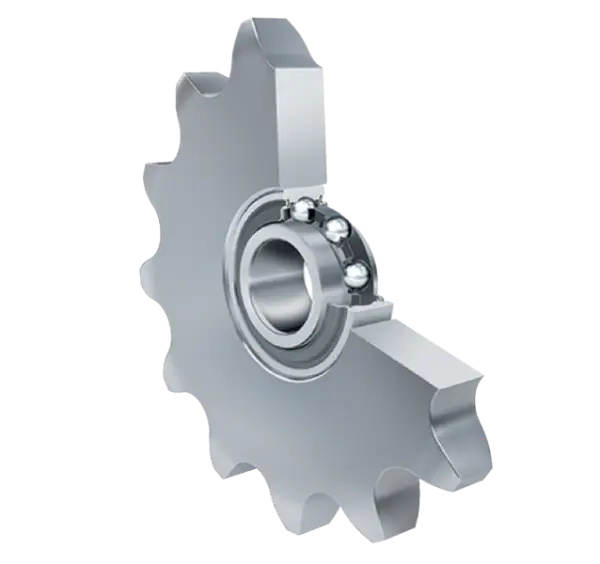

Roller Chain Idler Sprocket Unit

Roller chain idler sprocket units KSR..-L0, sprocket made from steel or sintered iron

(BRAND)：INA

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

KSR16-L0-08-10-16-15

Roller Chain Idler Sprocket Unit

Main Dimensions & Performance Data

d 16.2 mm Bore diameter

d 0.1 mm Upper tolerance

d 0 mm Lower tolerance

C₁ 7 mm Thickness of sprocket

D₀ 65.1 mm Pitch circle diameter (gearing)

D_k 70.5 mm Tip diameter (gearing)

≈m 0.16 kg Weight

Mounting dimensions

p 0.5 in Tooth set

z 16 Number of teeth

x ISO chain

x ANSI chain
