INA KSR20-L0-16-10-12-15

Roller Chain Idler Sprocket Unit

Roller chain idler sprocket units KSR..-L0, sprocket made from steel or sintered iron

(BRAND)：INA

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

KSR20-L0-16-10-12-15

Roller Chain Idler Sprocket Unit

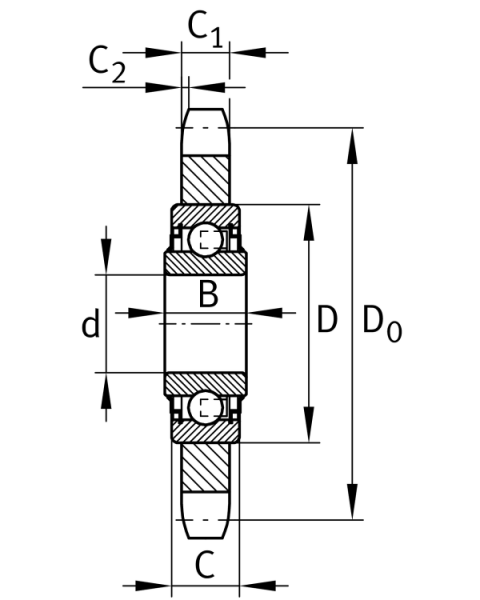

Main Dimensions & Performance Data

d 20 mm Bore diameter

d 0 mm Upper tolerance

d -0.01 mm Lower tolerance

C₁ 15.3 mm Thickness of sprocket

D₀ 98.1 mm Pitch circle diameter (gearing)

D_k 107.6 mm Tip diameter (gearing)

≈m 0.6 kg Weight

Mounting dimensions

p 1 in Tooth set

z 12 Number of teeth

x ISO chain

x ANSI chain
