INA LS1730
Axial Bearing Washers
Bearing washers, suitable for AXK and K811
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

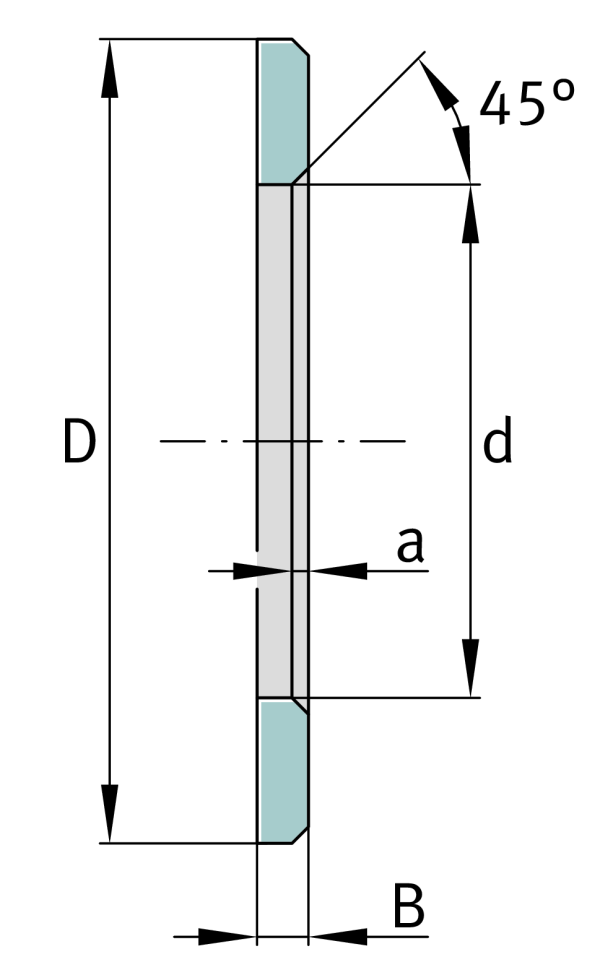

Main Dimensions & Performance Data
d
17 mm
Bore diameter track washer
D
30 mm
Outside diameter track washer
B
2.75 mm
Width
45 °
Chamfer Angle
amin
0.5 mm
Chamfer width
≈m
9.4 g
Weight
