INA LS5578
Axial Bearing Washers
Bearing washers, suitable for AXK and K811
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

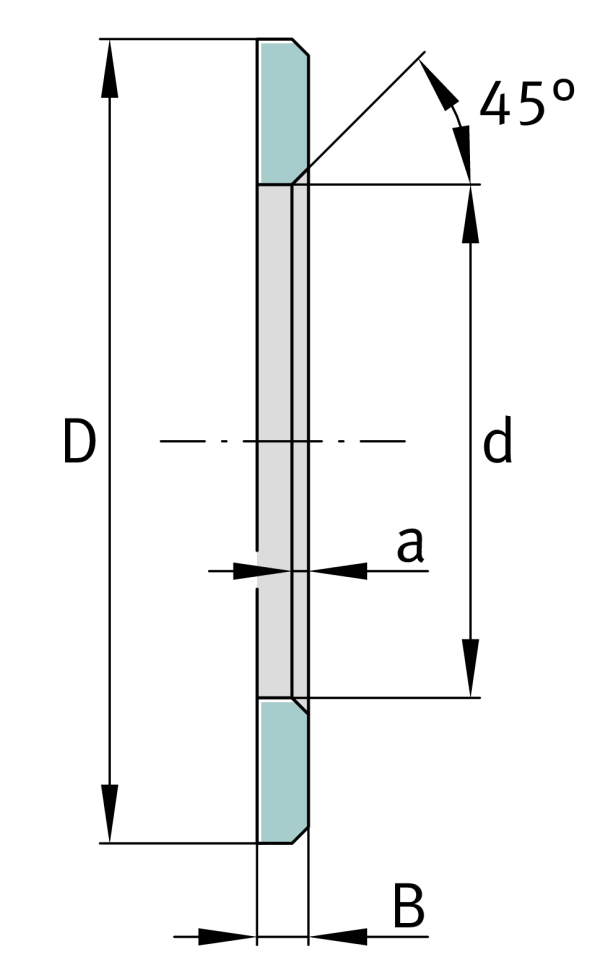

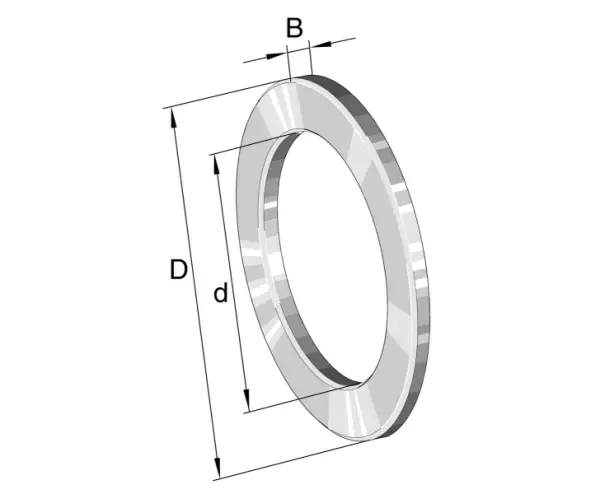

Main Dimensions & Performance Data
d
55 mm
Bore diameter track washer
D
78 mm
Outside diameter track washer
B
5 mm
Width
45 °
Chamfer Angle
amin
1 mm
Chamfer width
≈m
88.2 g
Weight
