INA N1896-M1-C3
Cylindrical Roller Bearings
Cylindrical roller bearing N2..-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N2
(BRAND)：INA
(Availability)：In Stock

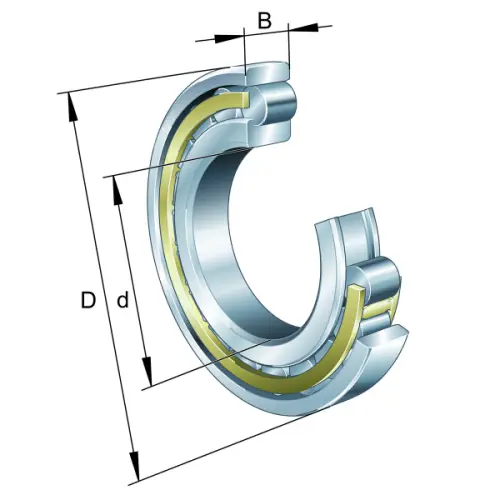

Main Dimensions & Performance Data
d
200 mm
Bore diameter
D
310 mm
Outside diameter
B
51 mm
Width
Cr
470,000 N
Basic dynamic load rating, radial
C0r
600,000 N
Basic static load rating, radial
Cur
87,000 N
Fatigue load limit, radial
≈m
34.5 kg
Weight
Mounting dimensions
da
210 mm
Diameter shaft shoulder
Da
300 mm
Diameter of housing shoulder
