INA NATV8-PP
Yoke Type Track Rollers
Yoke type track rollers NATV..-PP, full complement needle roller set, with axial guidance, axial plain washers on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

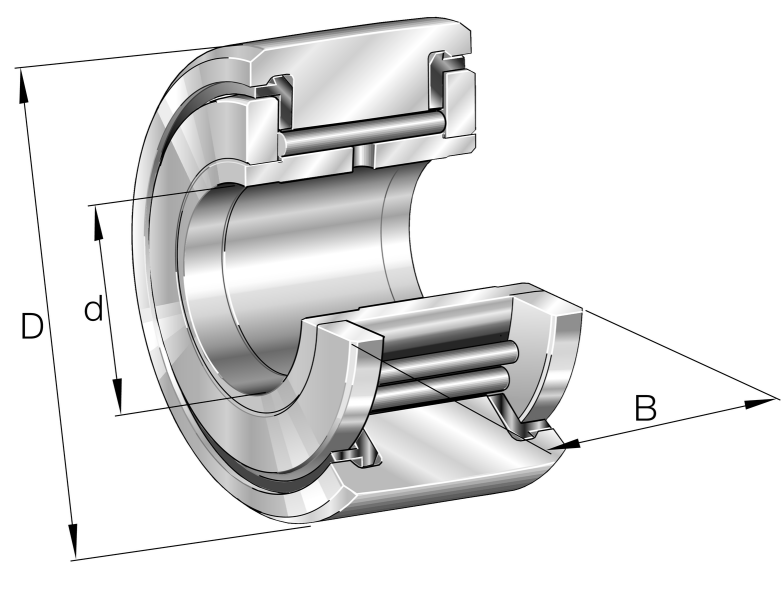

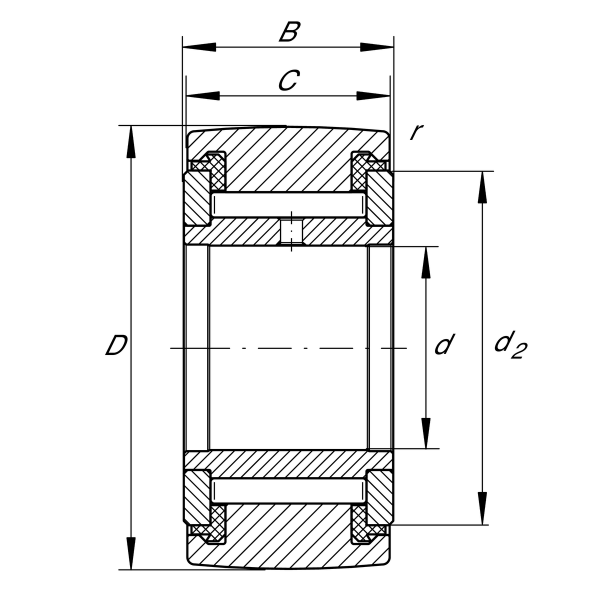

Main Dimensions & Performance Data
d
8 mm
Bore diameter
D
24 mm
Outside diameter
B
15 mm
Width of the bearing
Cr w
7,800 N
Basic dynamic load rating, radial
C0r w
11,700 N
Basic static load rating, radial
Cur w
1,620 N
Fatigue load limit, radial
nD G
2,500 1/min
Speed on permanent grease lubrication
F0r per
11,700 N
Permissible static load, radial
Fr per
10,200 N
Permissible dynamic load outer ring, radial
≈m
39 g
Weight
