INA NNTR50X130X65-2ZL
Yoke Type Track Rollers
Yoke type track roller NNTR..-2ZL, CRB, full complement roller set, two-row, with inner ring, 3 ribs on outer ring, not pallet changer
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

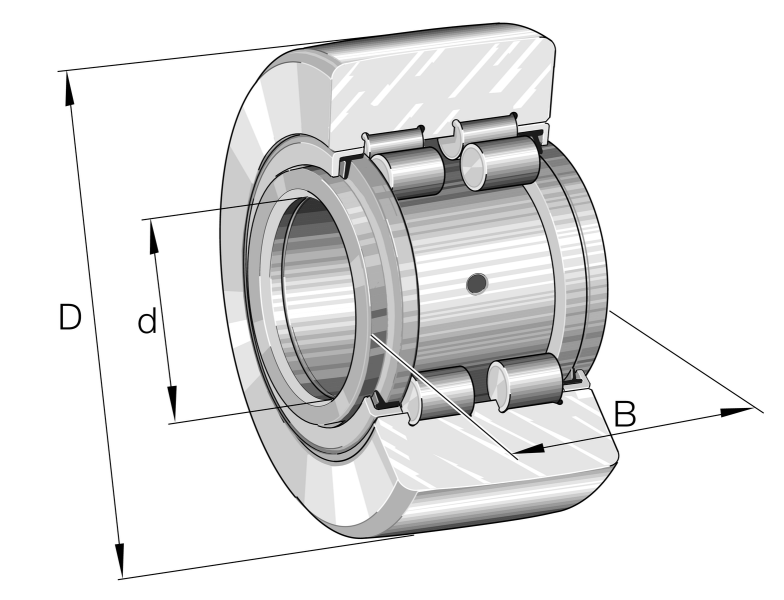

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
130 mm
Outside diameter
B
65 mm
Width, inner ring
Cr w
188,000 N
Basic dynamic load rating, radial
C0r w
270,000 N
Basic static load rating, radial
Cur w
39,500 N
Fatigue load limit, radial
nD G
1,100 1/min
Speed on permanent grease lubrication
F0r per
270,000 N
Permissible static load, radial
Fr per
270,000 N
Permissible dynamic load outer ring, radial
≈m
5.1 kg
Weight

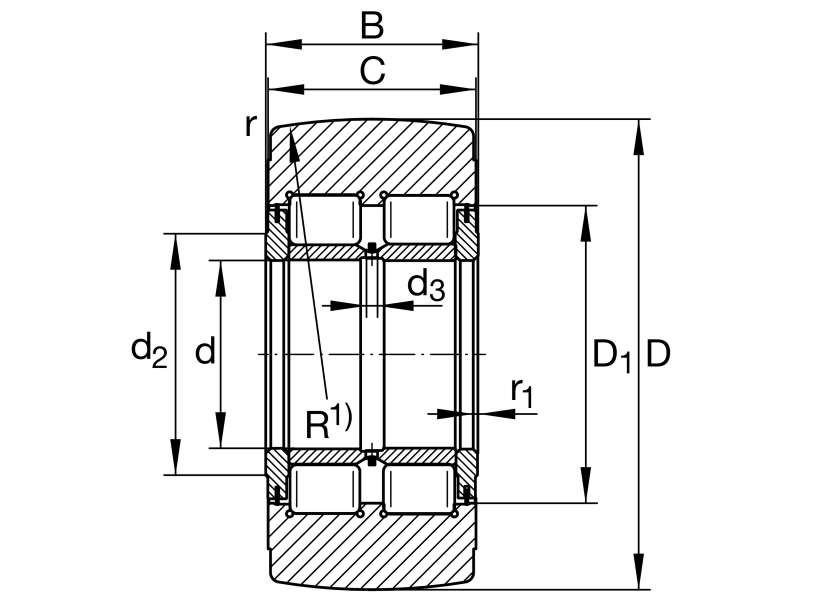

Mounting dimensions
d2
63 mm
Stop diameter of thrust washer
D1
80 mm
Mounting dimension
d3
3 mm
Diameter lubrication hole
R
10,000 mm
Radius of outer ring outside profile
3
Number of lubrication holes
