INA NJ18/710-MPAX-J30PC-CN/3L
Cylindrical Roller Bearings
Cylindrical roller bearing NJ..-MPAX, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：INA
(Availability)：In Stock

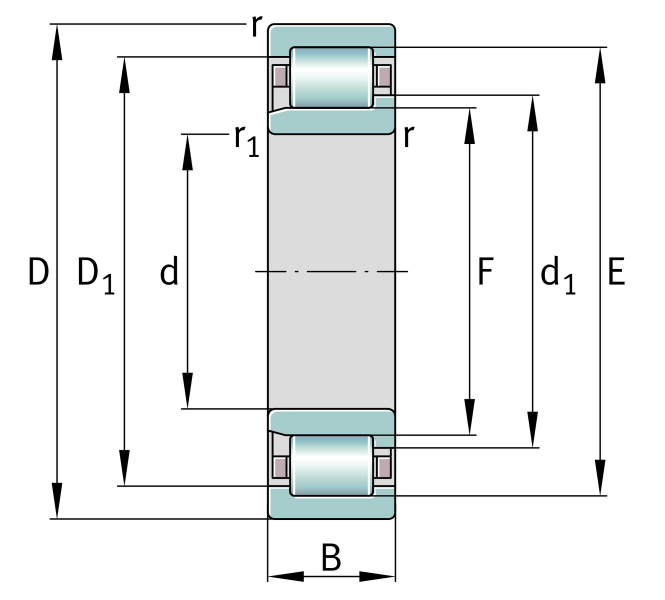

Main Dimensions & Performance Data
d
710 mm
Bore diameter
D
870 mm
Outside diameter
B
74 mm
Width
Cr
1,400,000 N
Basic dynamic load rating, radial
C0r
3,250,000 N
Basic static load rating, radial
Cur
280,000 N
Fatigue load limit, radial
CG
1,200 1/min
Limiting speed
≈m
94 kg
Weight
