INA NJ307-E-XL-TVP2>A
Cylindrical Roller Bearings

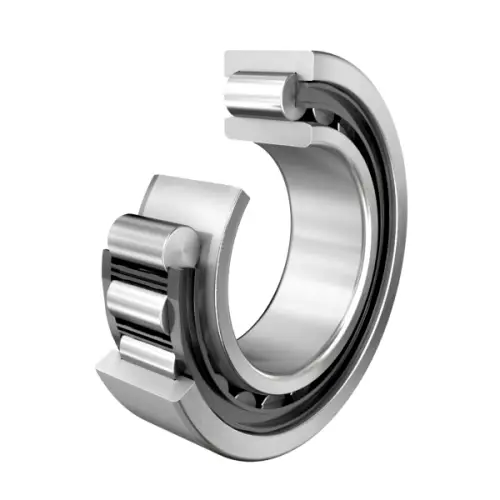

Cylindrical roller bearing NJ..-E-XL-TVP2, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
80 mm
Outside diameter
B
21 mm
Width
Cr
76,000 N
Basic dynamic load rating, radial
C0r
63,000 N
Basic static load rating, radial
Cur
10,800 N
Fatigue load limit, radial
CG
12,600 1/min
Limiting speed
nϑr
7,900 1/min
Reference speed
≈m
481.45 g
Weight
Mounting dimensions
da min
42 mm
Minimum diameter shaft shoulder
da max
45 mm
Maximum diameter of shaft shoulder
Da max
71 mm
Maximum diameter of housing shoulder
d min
53 mm
Minimum shaft shoulder
ra max
1.5 mm
Maximum recess radius
