INA NKXR35-XL
Needle Roller/Axial Cylindrical Roller Bearings
Needle roller/axial cylindrical roller bearings NKXR, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

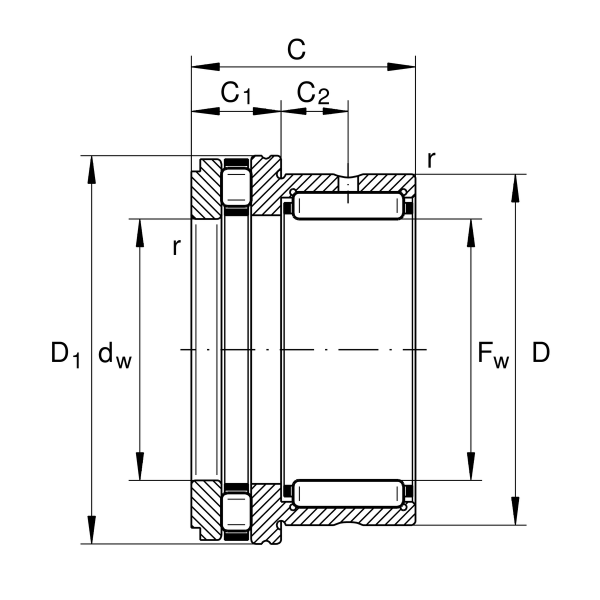

Main Dimensions & Performance Data
Fw
35 mm
Bore diameter
D
47 mm
Outside diameter
C
30 mm
Height
Cr
27,500 N
Basic dynamic load rating, radial
C0r
41,500 N
Basic static load rating, radial
Ca
39,000 N
Basic dynamic load rating, axial
C0a
101,000 N
Basic static load rating, axial
Cur
7,400 N
Fatigue load limit, radial
Cua
9,600 N
Fatigue load limit, axial
CG
6,500 1/min
Limiting speed
nϑr
2,500 1/min
Reference speed
≈m
154.93 g
Weight

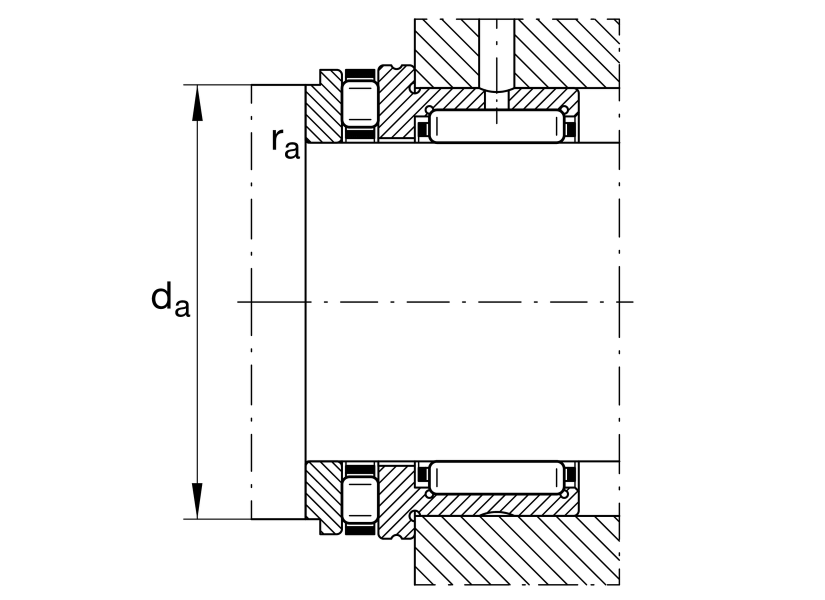

Mounting dimensions
da
47.7 mm
Mounting dimension shaft shoulder
ra max
0.6 mm
Maximum recess radius
