INA NKXR40-XL

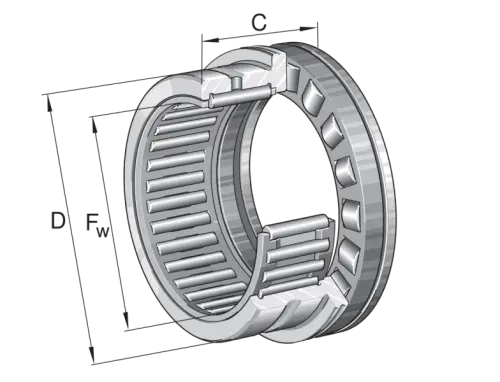

Needle Roller/Axial Cylindrical Roller Bearings
Needle roller/axial cylindrical roller bearings NKXR, axial component, single direction, to DIN 5429, without end cap, for oil lubrication
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
Fw
40 mm
Bore diameter
D
52 mm
Outside diameter
C
32 mm
Height
Cr
29,500 N
Basic dynamic load rating, radial
C0r
47,000 N
Basic static load rating, radial
Ca
56,000 N
Basic dynamic load rating, axial
C0a
148,000 N
Basic static load rating, axial
Cur
8,400 N
Fatigue load limit, radial
Cua
14,800 N
Fatigue load limit, axial
CG
6,000 1/min
Limiting speed
nϑr
2,000 1/min
Reference speed
≈m
202.67 g
Weight

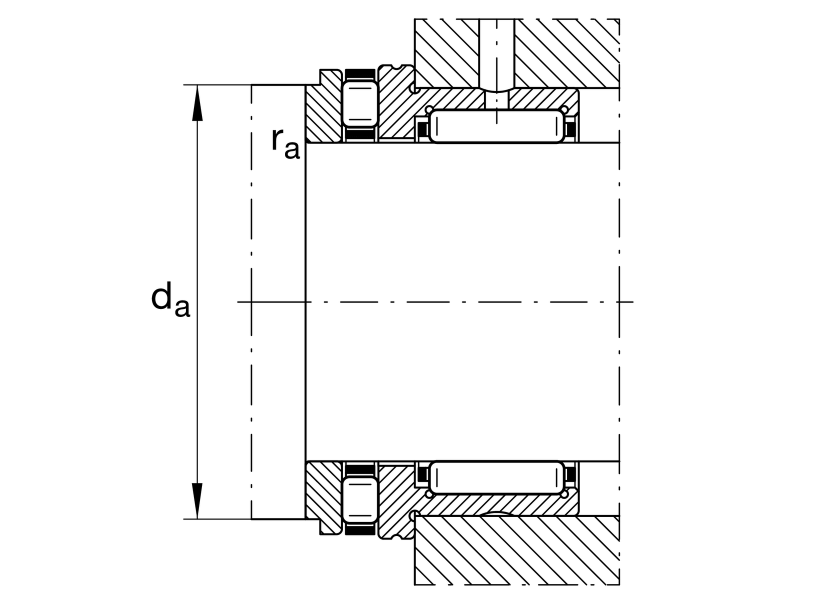

Mounting dimensions
da
55.7 mm
Mounting dimension shaft shoulder
ra max
0.6 mm
Maximum recess radius
