INA NU416-XL-M1-F1-C3
Cylindrical Roller Bearings

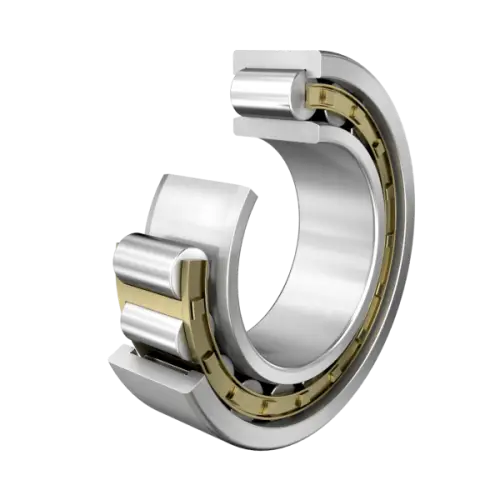

Cylindrical roller bearing NU..-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：INA
(Availability)：In Stock
Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
200 mm
Outside diameter
B
48 mm
Width
Cr
395,000 N
Basic dynamic load rating, radial
C0r
365,000 N
Basic static load rating, radial
Cur
47,000 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
nϑr
3,750 1/min
Reference speed
≈m
8.142 kg
Weight

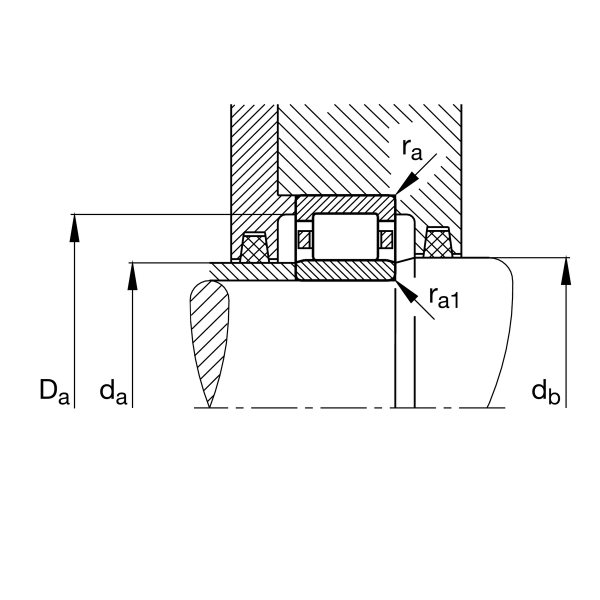

Mounting dimensions
da min
96 mm
Minimum diameter shaft shoulder
da max
109 mm
Maximum diameter of shaft shoulder
db min
112 mm
Minimum shaft shoulder
Da max
184 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
ra1 max
2.5 mm
Maximum recess radius
