INA NUP324-E-XL-MCA-C3
Cylindrical Roller Bearings

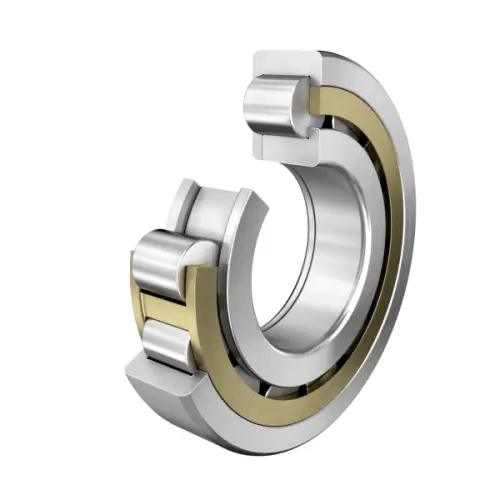

Cylindrical roller bearing NUP..-E-XL-MCA, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
260 mm
Outside diameter
B
55 mm
Width
Cr
610,000 N
Basic dynamic load rating, radial
C0r
600,000 N
Basic static load rating, radial
Cur
97,000 N
Fatigue load limit, radial
CG
4,550 1/min
Limiting speed
nϑr
2,650 1/min
Reference speed
≈m
14.09 kg
Weight
Mounting dimensions
d1
168.05 mm
Maximum rib diameter inner ring
D1 min
218.7 mm
Minimum rib diameter outer ring
da min
134 mm
Minimum diameter shaft shoulder
d min
171 mm
Minimum shaft shoulder
Da max
246 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
