INA NUTR4090
Yoke Type Track Rollers
Yoke type track rollers NUTR, full complement cylindrical roller set, with axial guidance, labyrinth seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

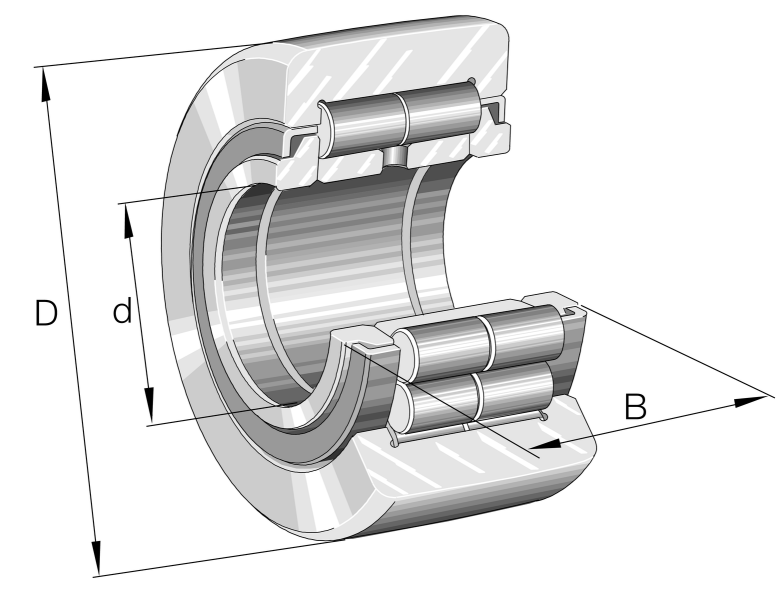

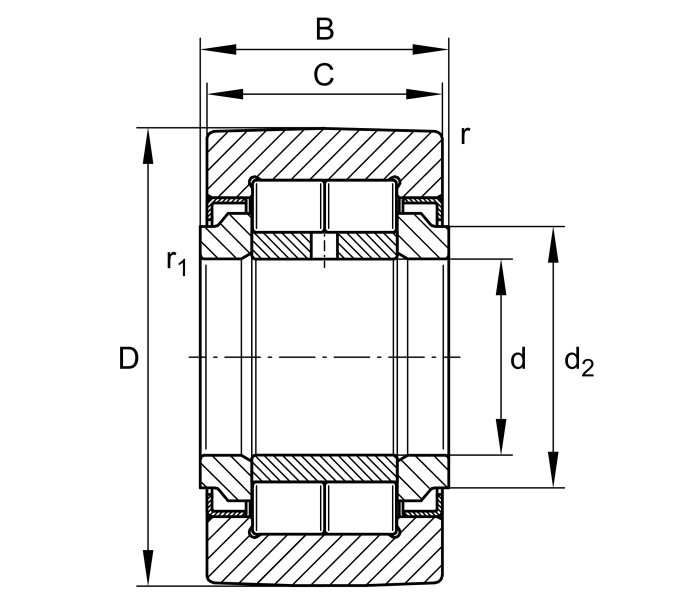

Main Dimensions & Performance Data
d
40 mm
Bore diameter
D
90 mm
Outside diameter
B
32 mm
Width of the bearing
Cr w
67,000 N
Basic dynamic load rating, radial
C0r w
101,000 N
Basic static load rating, radial
Cur w
14,200 N
Fatigue load limit, radial
nD G
1,600 1/min
Speed on permanent grease lubrication
F0r per
101,000 N
Permissible static load, radial
Fr per
83,000 N
Permissible dynamic load outer ring, radial
≈m
1.126 kg
Weight
