INA RA014-NPP
Insert Ball Bearings and Belt Tension Pulleys

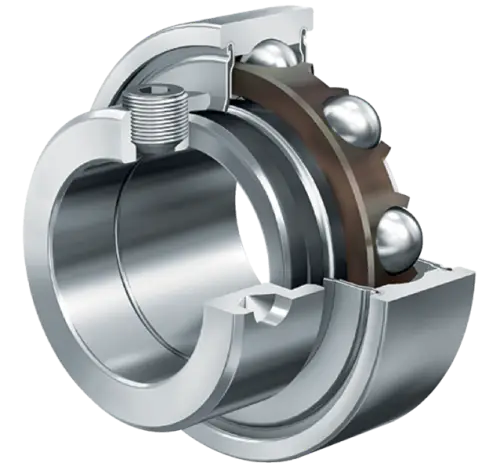

Radial insert ball bearing RA..-NPP
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

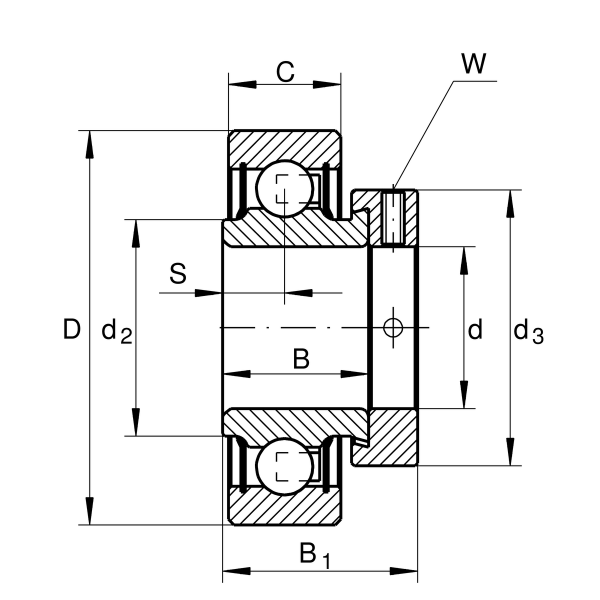

Main Dimensions & Performance Data
d
22.225 mm
Bore diameter
d
0.875 in
Bore diameter, inch
D
52 mm
Outside diameter
B1
31 mm
Locking collar total width
B
21.4 mm
Width
Cur
400 N
Fatigue load limit, radial
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
212 g
Weight
