INA RABRB25/62-XL-FA106
Insert Ball Bearings and Belt Tension Pulleys

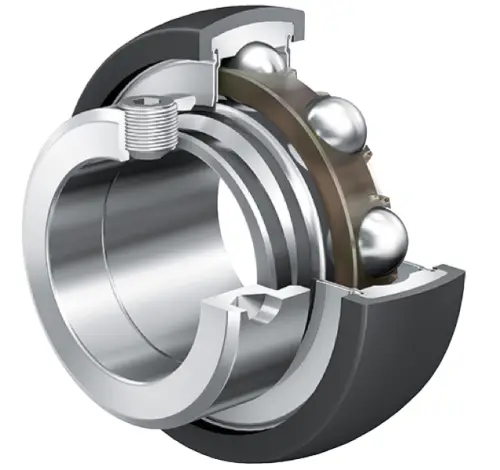

Radial insert ball bearings RABR, with rubber interliner, location by eccentric locking collar, P seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

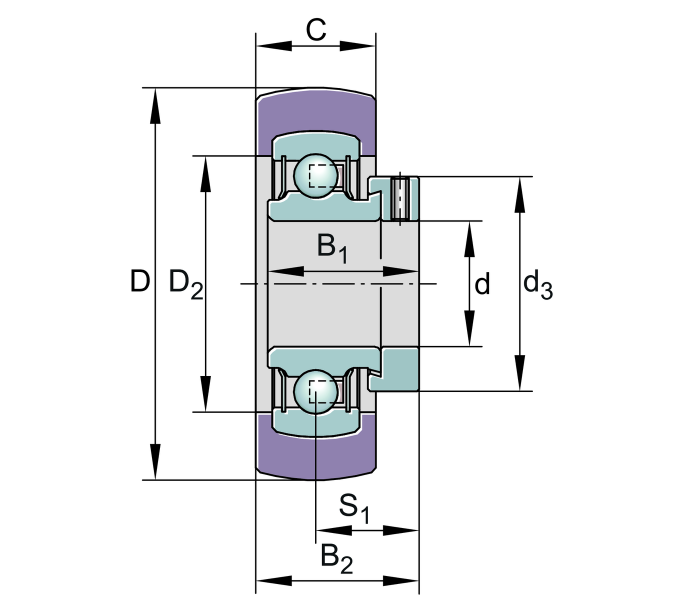

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
62.2 mm
Outside diameter
C
20.8 mm
Width, outer ring
B2
33.9 mm
Width total
B1
31 mm
Locking collar total width
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
370 N
Fatigue load limit, radial
1,390 N
Load carrying capacity (rubber interliner)
≈m
0.24 kg
Weight
