INA RAL012-NPP
Insert Ball Bearings and Belt Tension Pulleys

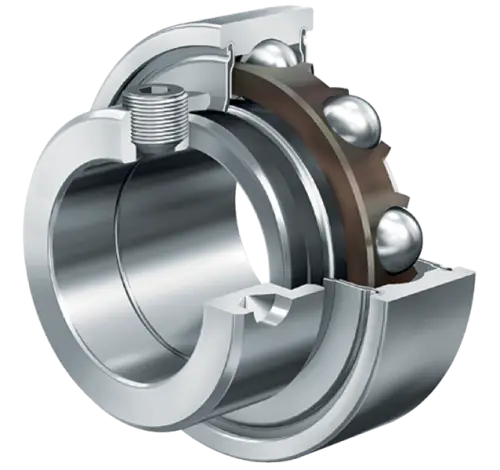

Radial insert ball bearings RAL..-NPP, cylindrical outer ring, location by eccentric locking collar, P seals on both sides, inch size bore
(BRAND)：INA
(Availability)：In Stock

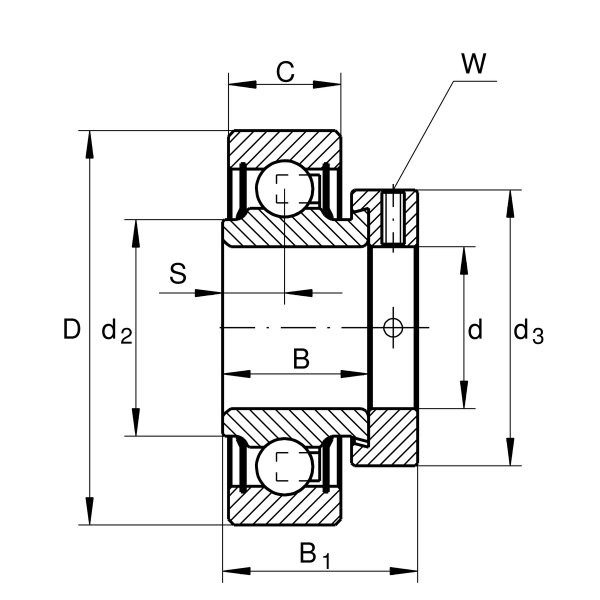

Main Dimensions & Performance Data
d
19.05 mm
Bore diameter
d
0.75 in
Bore diameter, inch
D
42 mm
Outside diameter
B
16.7 mm
Width
B1
24.6 mm
Locking collar total width
Cr
9,400 N
Basic dynamic load rating, radial
C0r
5,000 N
Basic static load rating, radial
Cur
231 N
Fatigue load limit, radial
≈m
104.17 g
Weight
