INA RALE20-XL-NPP-B
Insert Ball Bearings and Belt Tension Pulleys

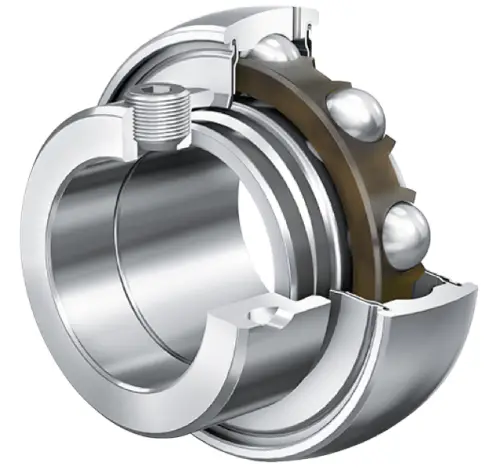

Radial insert ball bearings RALE..-NPP-B, spherical outer ring, location by eccentric locking collar, P seals on both sides
(BRAND)：INA
(Availability)：In Stock

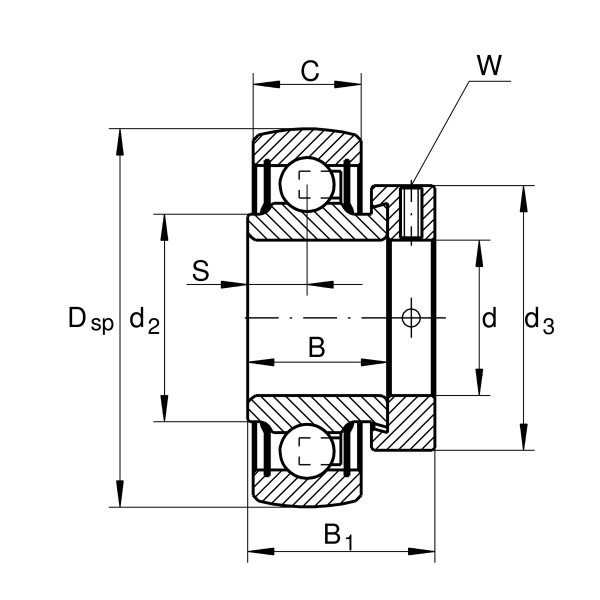

Main Dimensions & Performance Data
d
20 mm
Bore diameter
DSP
42 mm
Outside diameter
B
16.7 mm
Width
Cur
238 N
Fatigue load limit, radial
B1
24.5 mm
Locking collar total width
Cr
9,400 N
Basic dynamic load rating, radial
C0r
5,000 N
Basic static load rating, radial
≈m
0.1 kg
Weight
