INA RALE25-XL-NPP
Insert Ball Bearings and Belt Tension Pulleys

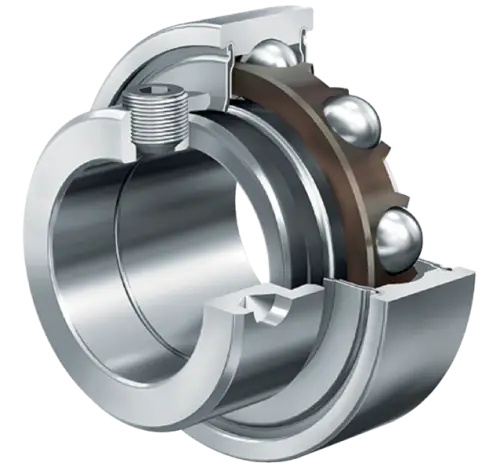

Radial insert ball bearings RALE..-NPP, cylindrical outer ring, location by eccentric locking collar, P seals on both sides
(BRAND)：INA
(Availability)：In Stock

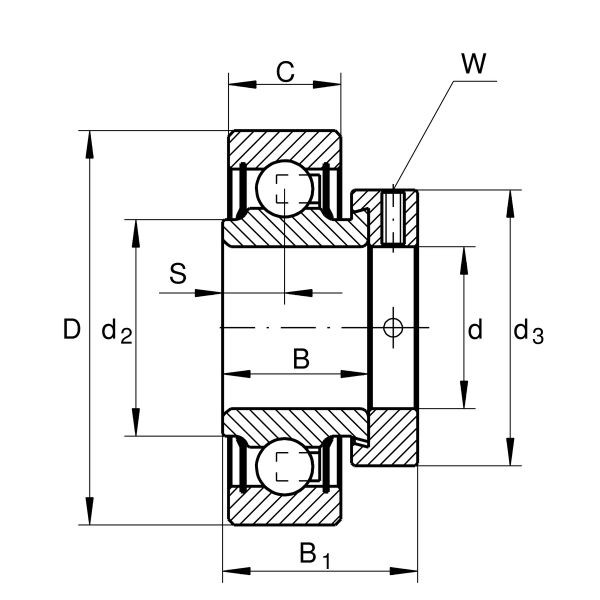

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
47 mm
Outside diameter
B
17.5 mm
Width
B1
25.5 mm
Locking collar total width
Cr
10,100 N
Basic dynamic load rating, radial
C0r
5,900 N
Basic static load rating, radial
Cur
280 N
Fatigue load limit, radial
≈m
0.13 kg
Weight
