INA RCSMB15/65-XL-FA106
Insert Ball Bearings and Belt Tension Pulleys
Radial insert ball bearings RCSM, with rubber interliner, location by eccentric locking collar, P seals on both sides
(BRAND)：INA
(Availability)：In Stock

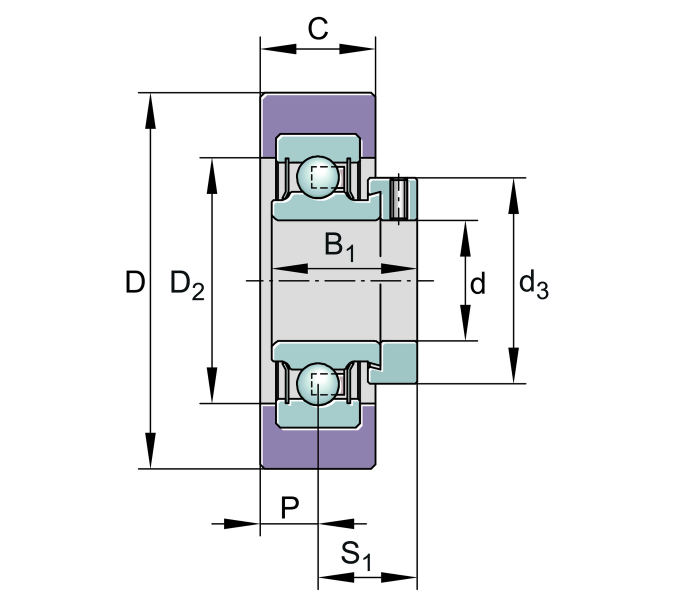

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
65.1 mm
Outside diameter
C
25.4 mm
Width, outer ring
B1
28.6 mm
Locking collar total width
Cr
10,100 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
Cur
248 N
Fatigue load limit, radial
900 N
Load carrying capacity (rubber interliner)
≈m
0.195 kg
Weight
