INA RCSMB20/65-XL-FA106
Insert Ball Bearings and Belt Tension Pulleys

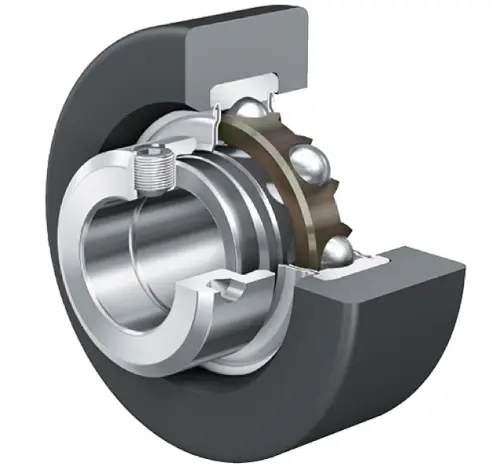

Radial insert ball bearings RCSM, with rubber interliner, location by eccentric locking collar, P seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
65.1 mm
Outside diameter
C
25.4 mm
Width, outer ring
B1
31 mm
Locking collar total width
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
315 N
Fatigue load limit, radial
1,200 N
Load carrying capacity (rubber interliner)
≈m
0.245 kg
Weight
