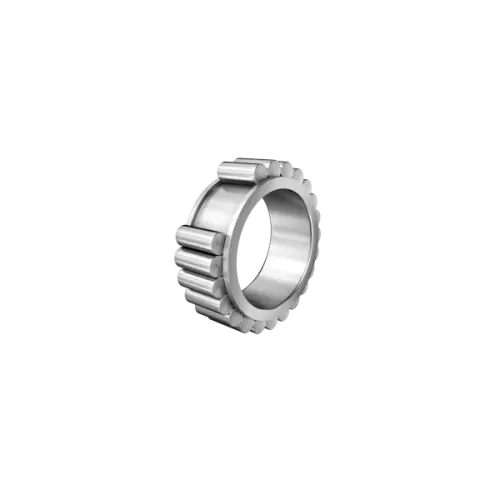

INA RSL182209-A-XL-BR
Cylindrical Roller Bearings
Cylindrical roller bearing RSL18..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
45 mm
Bore diameter
Ew
74.43 mm
Outer envelope circle
B
23 mm
Width
Cr
101,000 N
Basic dynamic load rating, radial
C0r
98,000 N
Basic static load rating, radial
Cur
16,300 N
Fatigue load limit, radial
CG
5,300 1/min
Limiting speed
≈m
331.65 g
Weight
Mounting dimensions
da min
57.5 mm
Minimum diameter shaft shoulder
X
15 mm
Raceway width
