INA RSL182214-XL-RV
Cylindrical Roller Bearings

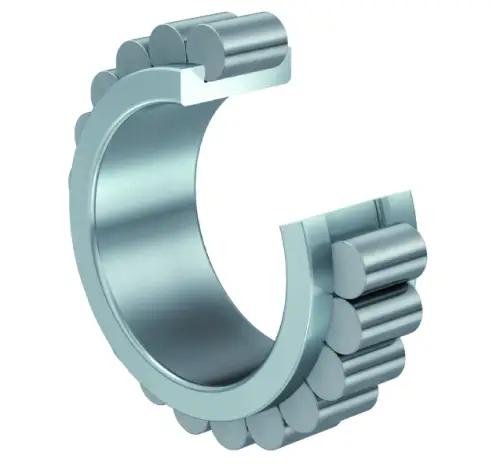

Cylindrical roller bearing RSL18..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, edge radius RV on one side, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

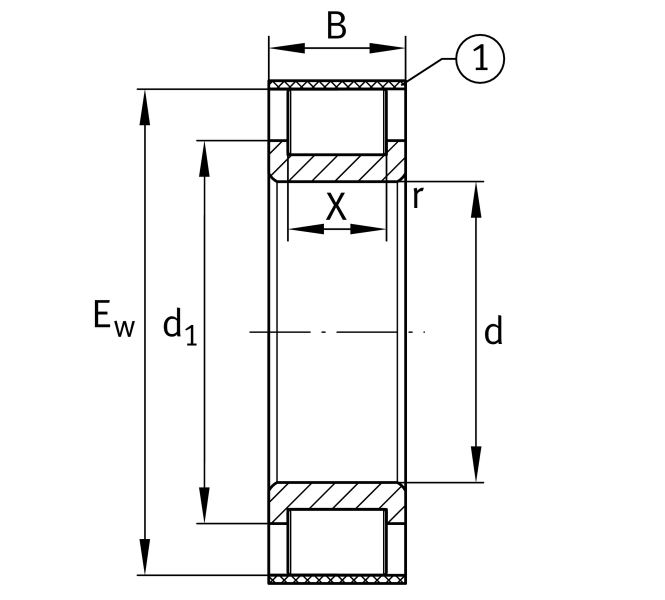

Main Dimensions & Performance Data
d
70 mm
Bore diameter
Ew
111.01 mm
Outer envelope circle
B
31 mm
Width
Cr
205,000 N
Basic dynamic load rating, radial
C0r
223,000 N
Basic static load rating, radial
Cur
42,000 N
Fatigue load limit, radial
CG
3,450 1/min
Limiting speed
≈m
0.98 kg
Weight
Mounting dimensions
da min
87 mm
Minimum diameter shaft shoulder
X
22 mm
Raceway width
