INA RSL182305-A
Cylindrical Roller Bearings

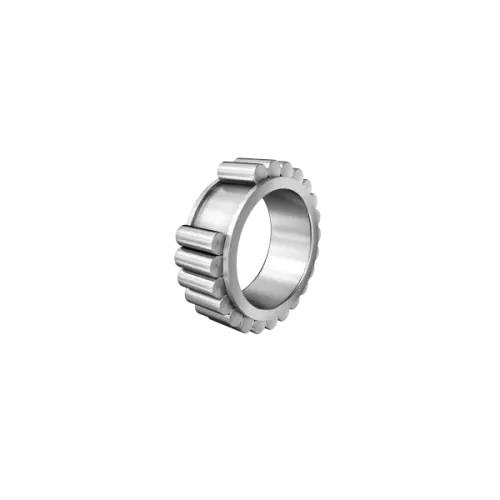

Cylindrical roller bearing RSL1823, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

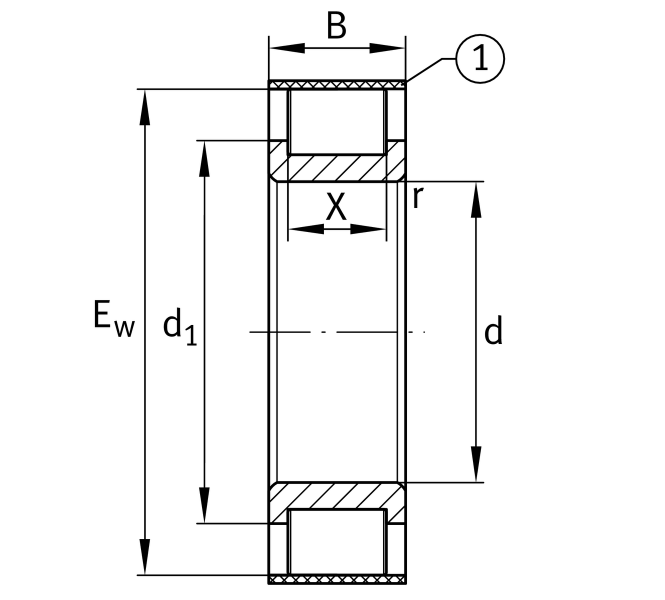

Main Dimensions & Performance Data
d
25 mm
Bore diameter
Ew
53.72 mm
Outer envelope circle
B
24 mm
Width
Cr
64,000 N
Basic dynamic load rating, radial
C0r
59,000 N
Basic static load rating, radial
Cur
7,800 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
≈m
0.208 kg
Weight
Mounting dimensions
da min
34.5 mm
Minimum diameter shaft shoulder
X
15 mm
Raceway width
