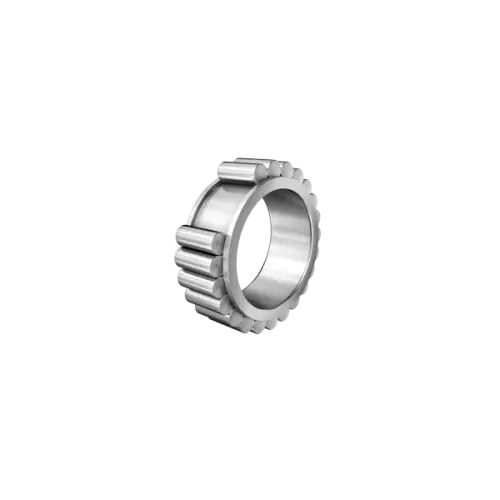

INA RSL182309-A
Cylindrical Roller Bearings
Cylindrical roller bearing RSL1823, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

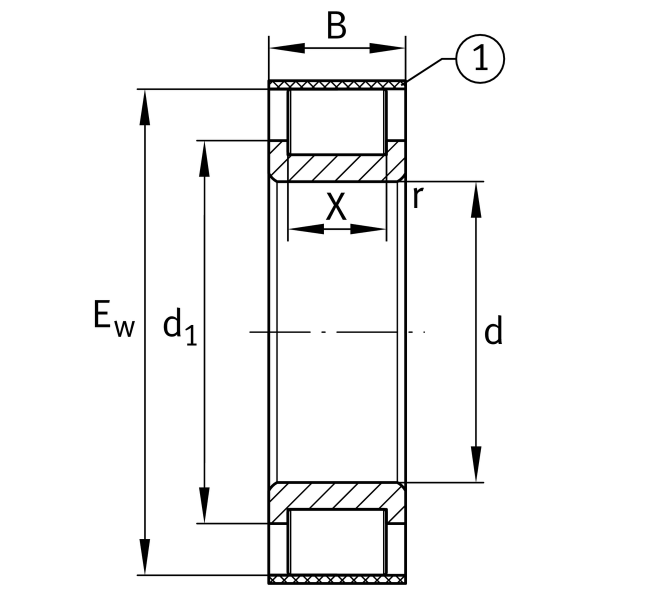

Main Dimensions & Performance Data
d
45 mm
Bore diameter
Ew
88.32 mm
Outer envelope circle
B
36 mm
Width
Cr
160,000 N
Basic dynamic load rating, radial
C0r
163,000 N
Basic static load rating, radial
Cur
24,900 N
Fatigue load limit, radial
CG
4,700 1/min
Limiting speed
≈m
0.813 kg
Weight
Mounting dimensions
da min
61 mm
Minimum diameter shaft shoulder
X
24 mm
Raceway width
