INA RSL1830/17-XL-RV
Cylindrical Roller Bearings
Cylindrical roller bearing RSL1830..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, edge radius RV on one side, type RSL18
(BRAND)：INA
(Availability)：In Stock

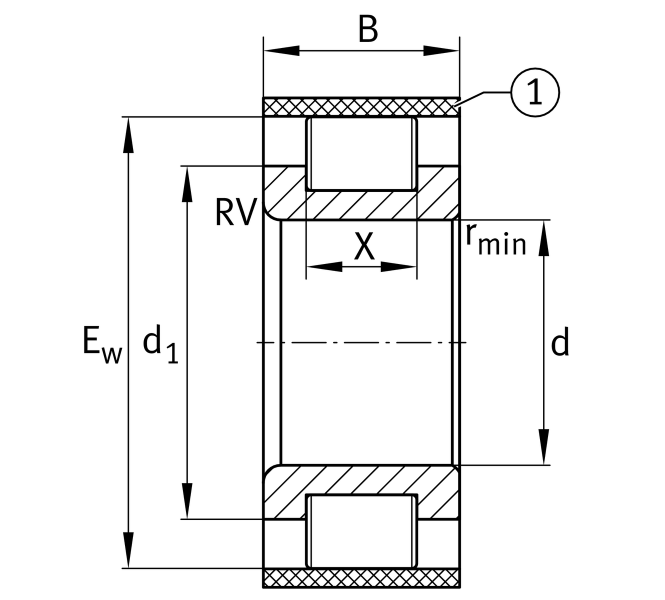

Main Dimensions & Performance Data
d
17 mm
Bore diameter
Ew
27.15 mm
Outer envelope circle
B
14 mm
Width
Cr
23,400 N
Basic dynamic load rating, radial
C0r
19,600 N
Basic static load rating, radial
Cur
3,300 N
Fatigue load limit, radial
CG
15,800 1/min
Limiting speed
≈m
0.04 kg
Weight

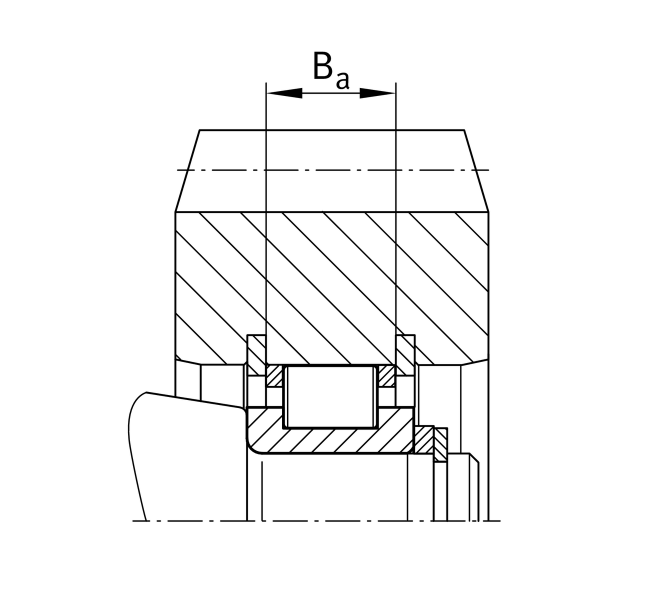

Mounting dimensions
da min
24.4 mm
Minimum diameter shaft shoulder
X
8 mm
Raceway width
