INA RSL183006-A-XL-2S
Cylindrical Roller Bearings

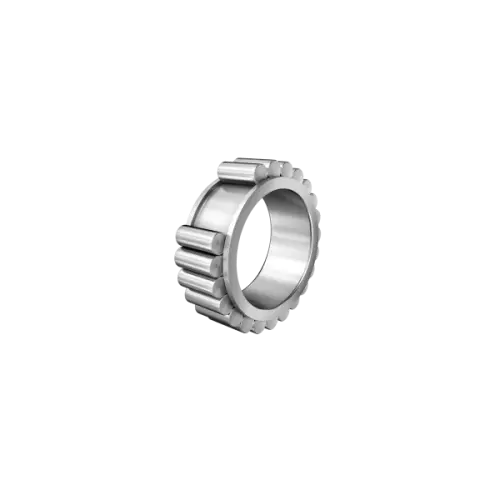

Cylindrical roller bearing RSL1830..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
30 mm
Bore diameter
Ew
49.6 mm
Outer envelope circle
B
19 mm
Width
Cr
45,000 N
Basic dynamic load rating, radial
C0r
42,000 N
Basic static load rating, radial
Cur
7,600 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
≈m
120.4 g
Weight
Mounting dimensions
da min
40 mm
Minimum diameter shaft shoulder
X
10 mm
Raceway width
