INA RSL183008-XL-RV
Cylindrical Roller Bearings
Cylindrical roller bearing RSL1830..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, edge radius RV on one side, type RSL18
(BRAND)：INA
(Availability)：In Stock

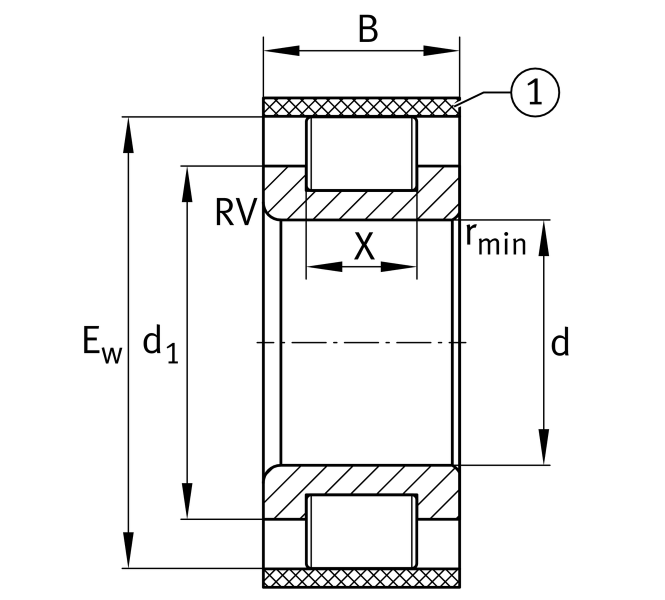

Main Dimensions & Performance Data
d
40 mm
Bore diameter
Ew
61.74 mm
Outer envelope circle
B
21 mm
Width
Cr
66,000 N
Basic dynamic load rating, radial
C0r
67,000 N
Basic static load rating, radial
Cur
11,400 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
≈m
0.2 kg
Weight

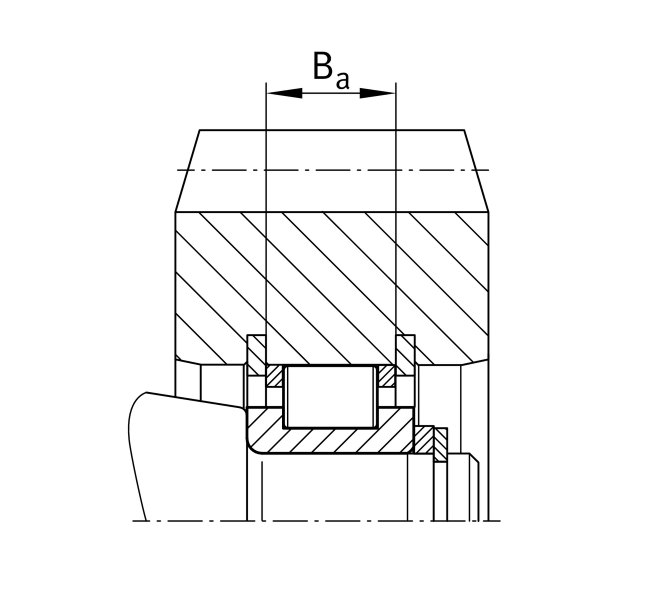

Mounting dimensions
da min
50.5 mm
Minimum diameter shaft shoulder
X
12 mm
Raceway width
