INA RSL183014-XL-RV
Cylindrical Roller Bearings
Cylindrical roller bearing RSL1830..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, edge radius RV on one side, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

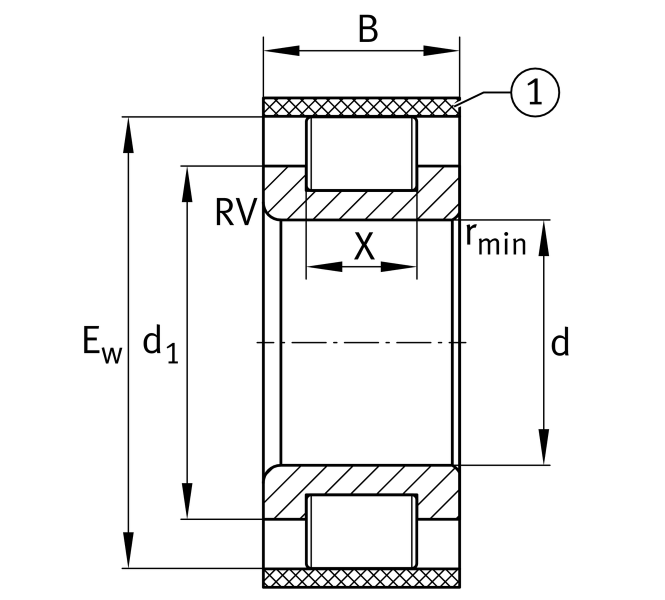

Main Dimensions & Performance Data
d
70 mm
Bore diameter
Ew
100.28 mm
Outer envelope circle
B
30 mm
Width
Cr
153,000 N
Basic dynamic load rating, radial
C0r
174,000 N
Basic static load rating, radial
Cur
30,000 N
Fatigue load limit, radial
CG
3,750 1/min
Limiting speed
≈m
0.6 kg
Weight

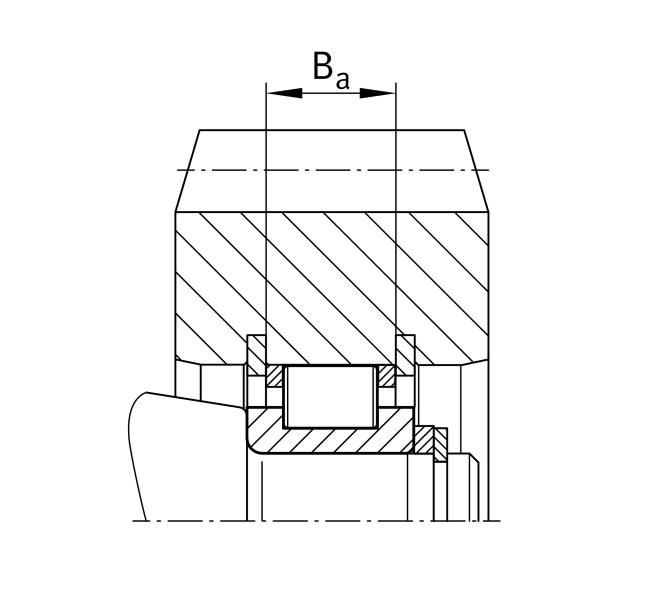

Mounting dimensions
da min
81.5 mm
Minimum diameter shaft shoulder
X
18 mm
Raceway width
