INA RSL183015-A-XL-3S
Cylindrical Roller Bearings

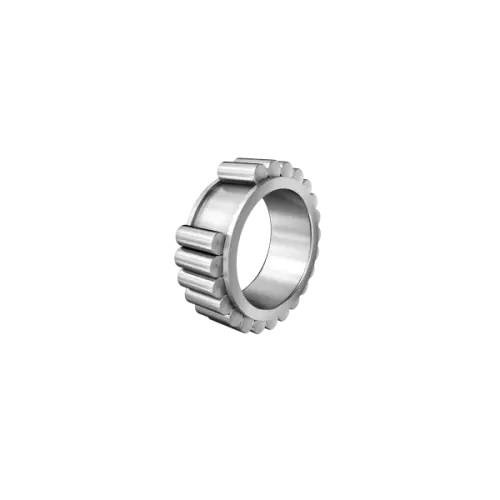

Cylindrical roller bearing RSL1830..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
75 mm
Bore diameter
Ew
107.9 mm
Outer envelope circle
B
30 mm
Width
Cr
162,000 N
Basic dynamic load rating, radial
C0r
192,000 N
Basic static load rating, radial
Cur
33,000 N
Fatigue load limit, radial
CG
3,950 1/min
Limiting speed
≈m
0.74 kg
Weight
Mounting dimensions
da min
89 mm
Minimum diameter shaft shoulder
X
18 mm
Raceway width
