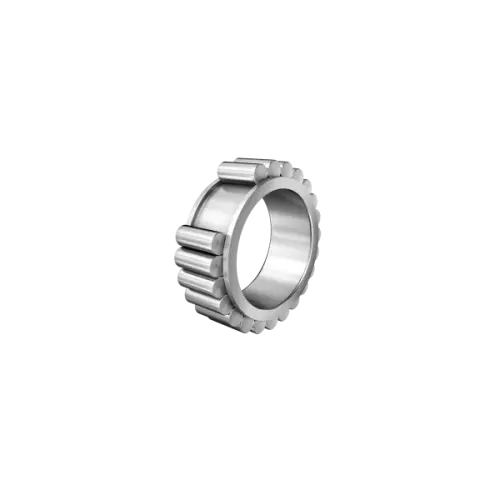

INA RSL183016-XL
Cylindrical Roller Bearings
Cylindrical roller bearing RSL1830..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

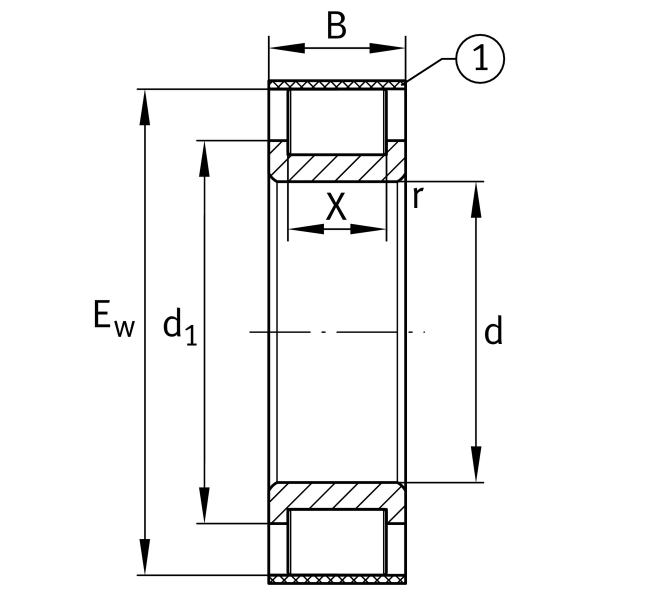

Main Dimensions & Performance Data
d
80 mm
Bore diameter
Ew
116.99 mm
Outer envelope circle
B
34 mm
Width
Cr
193,000 N
Basic dynamic load rating, radial
C0r
220,000 N
Basic static load rating, radial
Cur
41,500 N
Fatigue load limit, radial
CG
3,200 1/min
Limiting speed
≈m
0.97 kg
Weight
Mounting dimensions
da min
95 mm
Minimum diameter shaft shoulder
X
20 mm
Raceway width
