INA RSL185010-A-BR-2S
Cylindrical Roller Bearings
Cylindrical roller bearing RSL18, full complement roller set, two-row, semi-locating bearing, no outer ring, 3 ribs on inner ring, type RSL18
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

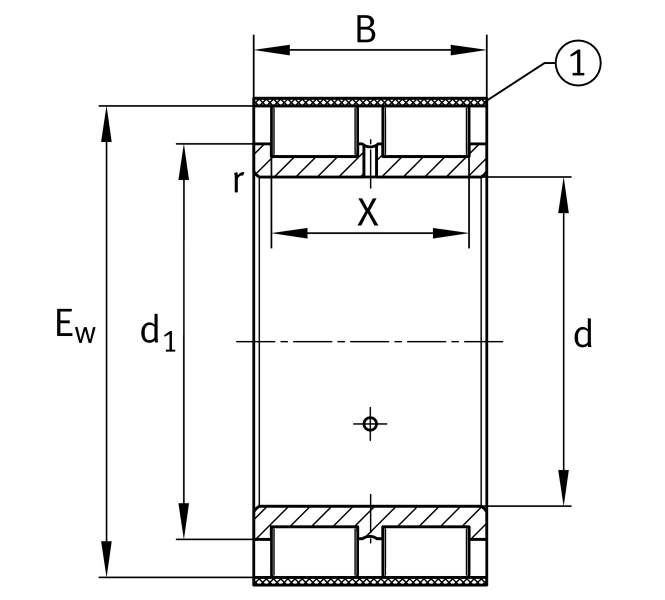

Main Dimensions & Performance Data
d
50 mm
Rib diameter inner ring
Ew
72.33 mm
B
40 mm
Width
Cr
134,000 N
Basic dynamic load rating, radial
C0r
188,000 N
Basic static load rating, radial
Cur
24,800 N
Fatigue load limit, radial
CG
5,300 1/min
Limiting speed
nϑr
3,300 1/min
Reference speed
≈m
460 g
Weight
Mounting dimensions
da min
59.5 mm
Minimum diameter shaft shoulder
